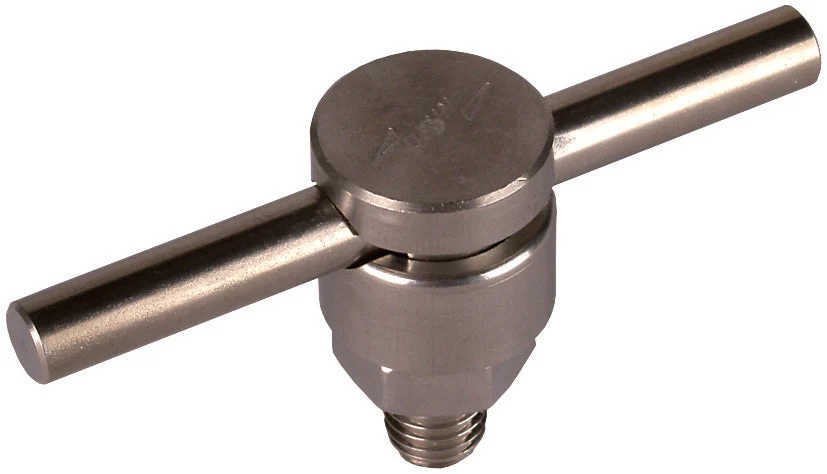

The Dehn KS connector is designed for lightning protection applications. Made from stainless steel 304 (V2A), its connection type is connector and it uses a clamping screw mechanism for secure fastening. The connector has a diameter of 1.6-10mm for round conductors and does not have any surface protection, being untreated. Its lightning current carrying capacity is 10/350 µs 100kA. This one-piece connector is in compliance with DIN EN 62561-1 standards and can efficiently link round conductors to flat profiles, downpipe clamps, or other parts of the lightning protection system. It’s also equipped with a M10 screw, spring washer, and nut for easy installation.
Specifications
Type of connector : Connector
Diameter round conductor 1 (mm) : 6 mm to 10 mm
Material : Stainless steel V2A
Surface protection : Untreated
Type of fastening screws : Clamp screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
