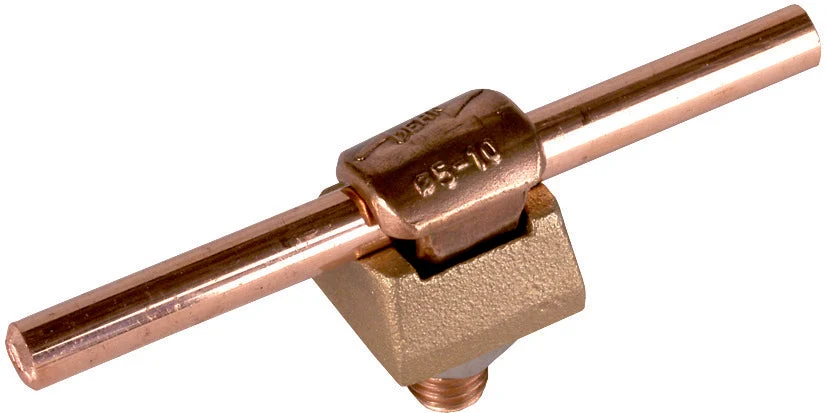

The Dehn KS connector for lightning protection is made of red cast iron and offers a strong lightning current carrying capacity of 100kA (10/350 µs). It supports a connector type connection and is designed to accommodate a round conductor diameter of 1.6mm – 10mm. The connector surface is uncoated (untreated), ensuring durability. It features a user-friendly clamping screw design for easy fastening. The Dehn KS clamp screw connector complies with DIN EN 62561-1 standards and can be used with various parts of a lightning protection system.
Specifications
Type of connector : Connector
Diameter round conductor 1 (mm) : 6 mm to 10 mm
Material : Red cast iron
Surface protection : Untreated
Type of fastening screws : Clamp screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
