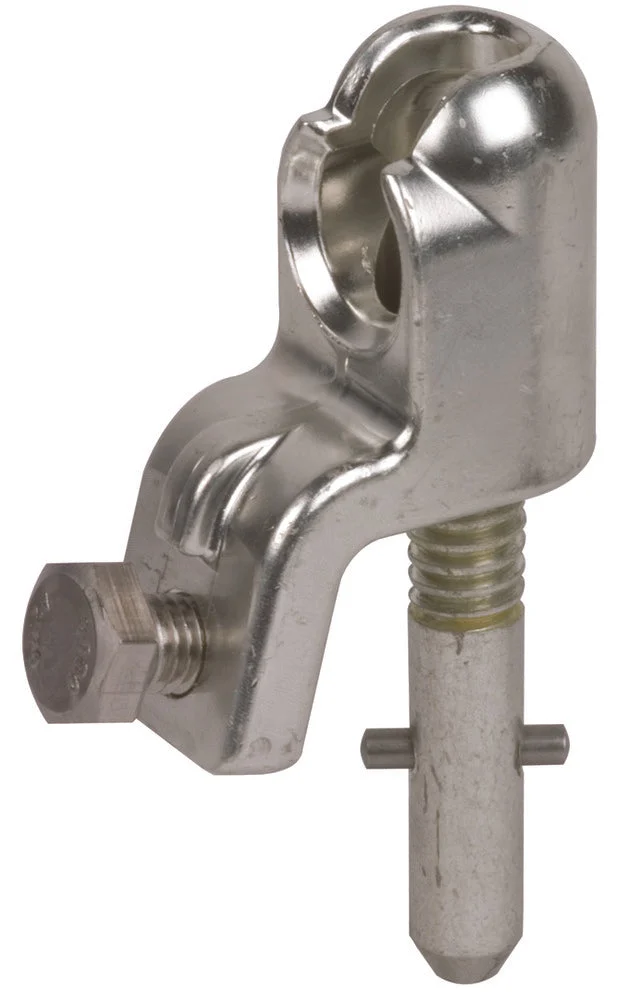

Dehn KKH 20 SQ Rigid Ball Head Cap With T Pin Shaft For Cables – 772311

This is a Rigid ball head cap with a T pin shaft, suitable for use as a phase or earth connecting element in accordance with EN/IEC 61230 (DIN VDE 0683-100) with earthing and short-circuiting devices. Ideal for fixed ball points and featuring an anti-rotation element (PK1). Capable of handling a maximum short-circuit current of 33.5kA, it accommodates a wire cross-section of 16 – 120mm². Equipped with a 20mm bullet-proof point connection method and a spindle control rod mounting with cross pin, it provides twist protection for secure installation.

Specifications

Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Connection type : Fixed ball point 20 mm
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
