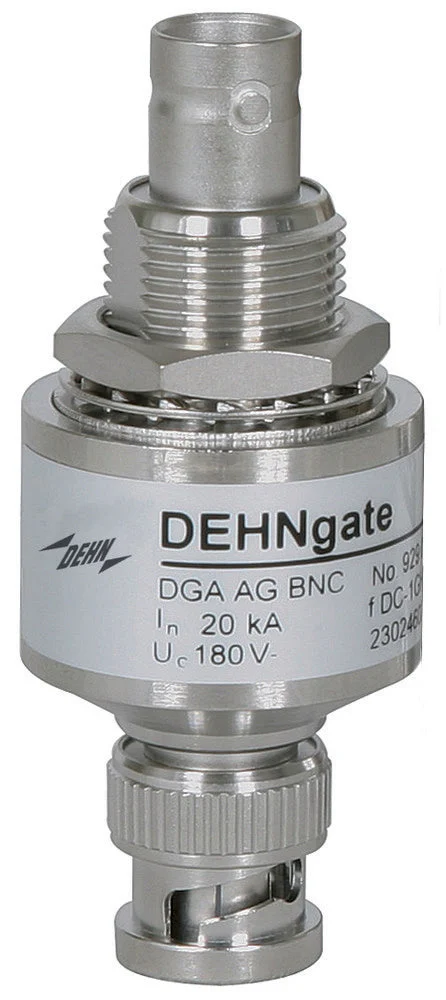

The Dehn DEHNgate is a lightning current arrester specifically designed for data and M&R with a type dataline BNC deflector. This device has a 50Ohm impedance and a maximum remaining voltage of 0.75kV. Moreover, it features a nominal discharge surge current (8/20) of 20kA. Its gas discharge tube is replaceable, providing for convenient maintenance and cost-efficiency. In addition, it is equipped with remote supply capabilities, offering great flexibility during installation and operation.
Specifications
Nominal voltage DC (V) : 180
Max. continuous voltage DC (V) : 180
Lightning impulse current (10/350 µs) (kA) : 5
Nominal discharge surge current (8/20) (kA) : 20
Nominal load current (A) : 3.5
Voltage protection level (V) : 850
Frequency (MHz) : 0 MHz to 1000 MHz
Mounting method : Connector/cable adapter
Pro-active thermo-control : No
Connection 1 : BNC, 50 Ohm
With remote signalling contact : No
Explosion-tested version : No
