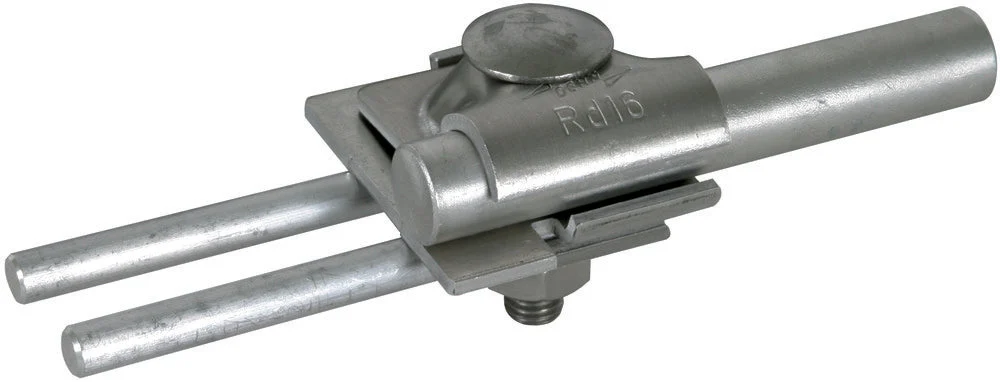

This is a Dehn connector used for lightning protection, composed of aluminum, with a parallel plug connection type. The first round conductor diameter is 16mm, and the second round conductor diameter ranges between 8 – 10mm. The surface is not treated, providing no surface protection. The type of fastening screws is not specified. It is a FS clamp in accordance with EN 62561-1 standards. This clamp is utilized for connecting air-termination rods Rd 10mm to two round conductors. The clamp comes with a truss head screw and anti-rotation protection, suitable for longitudinal or cross connection.
Specifications
Type of connector : Parallel connector
Diameter round conductor 1 (mm) : 16 mm to 16 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Material : Aluminum
Surface protection : Untreated
Type of fastening screws : Other
