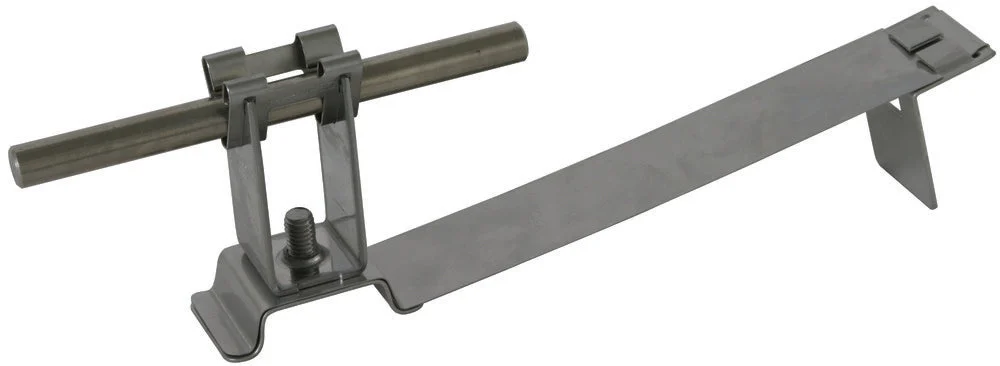

The Dehn FLEXIgrip roof conductor holder is designed for lightning protection, with an attachment method that uses a clamping bracket. The structure height of the conductor holder is 32mm and the carrier length is 170mm, made from stainless steel 304 (V2A). The holder also uses stainless steel 304 (V2A) and has a nominal conductor diameter of 8mm. It is suitable for sloping roof surfaces. The FLEXIsnap version comes with an angled, flexible brace that is thin (0.3mm) and able to form fit to tile grooves. It features a DEHNgrip conductor holder and loose conductor routing for air-termination and down conductor installation on roofs.
Specifications
Mounting type conductor : With grip clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Roof surface pitched
Mounting method : To hang in
Material of holder : Stainless steel V2A
Material of carrier : Stainless steel V2A
Length carrier (mm) : 170
Assembly height conductor holder (mm) : 32
