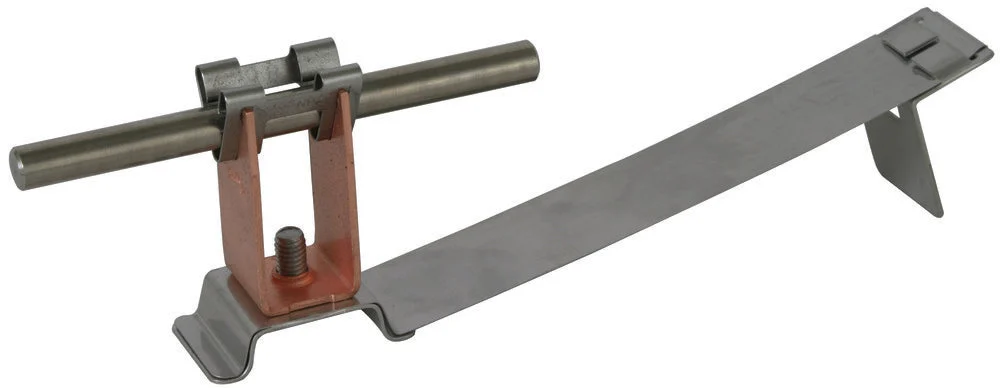

The Dehn FLEXIgrip is a roof conductor holder designed for lightning protection. It features an attachment method with a clamp bracket and has a building height of the conductor holder of 32mm as well a carrier length of 170mm. It’s constructed with a stainless steel carrier (V2A or RVS 304) mould that fits itself to the grooves of the tile. The holder is made of copper, suitable for a nominal conductor diameter of 8mm, and it is best applied on angled roof surfaces. It also comes with a FLEXIsnap feature that accommodates loose conductor routing, offering flexibility for air-termination and down conductors installation on roofs.
Specifications
Mounting type conductor : With grip clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Roof surface pitched
Mounting method : To hang in
Material of holder : Copper
Material of carrier : Stainless steel V2A
Length carrier (mm) : 170
Assembly height conductor holder (mm) : 32
