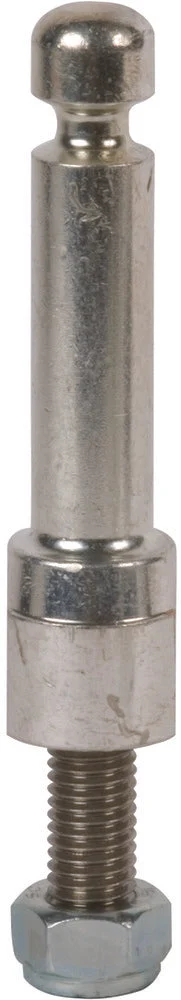

The Dehn fixed point earthing/short-circuiting device, with its non-cutting formed thread, offers high mechanical strength. It is provided with a threaded bolt and self-locking nut and can withstand a maximum short-circuit current of 42kA. With a straight construction, it allows a connection of the earthing and ring groove of 16mm. This connection point is to be used in adherence to EN/IEC 61230 (DIN VDE 0683-100) in the earthing system. It has a maximum thread cross-section for copper at 150mm². The diameter of the fixed point is 16mm.
Specifications
Max. short circuit current (kA) : 42
Construction type : Straight
Mounting method : With thread bolt
Connection of the earthing and short circuit device : Radial groove 16 mm
Max. wire cross section copper (mm²) : 150
Diameter fixed point (mm) : 16
Suitable for round conductors : No
