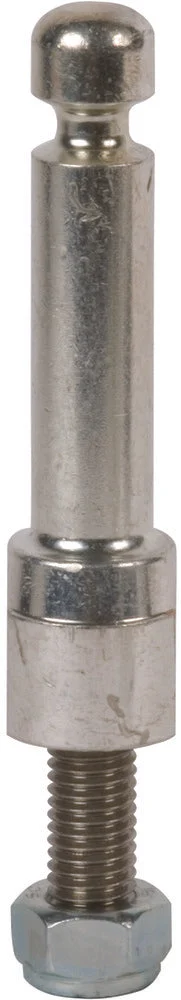

This is a ring groove fixed point with a diameter of 16mm, featuring a threaded pin and a self-locking nut. It’s designed for use as an earth-side connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) within the earthing system. It has been built for maximum mechanical strength due to its non-cutting formed thread. The connection of the earth and ring groove is 16mm, with a maximum short circuit current of 42kA and a straight construction type. The item is fitted with a wire bolt and accepts a maximum wire cross-section of copper measuring 150mm².
Specifications
Max. short circuit current (kA) : 42
Construction type : Straight
Mounting method : With thread bolt
Connection of the earthing and short circuit device : Radial groove 16 mm
Max. wire cross section copper (mm²) : 150
Diameter fixed point (mm) : 16
Suitable for round conductors : No
