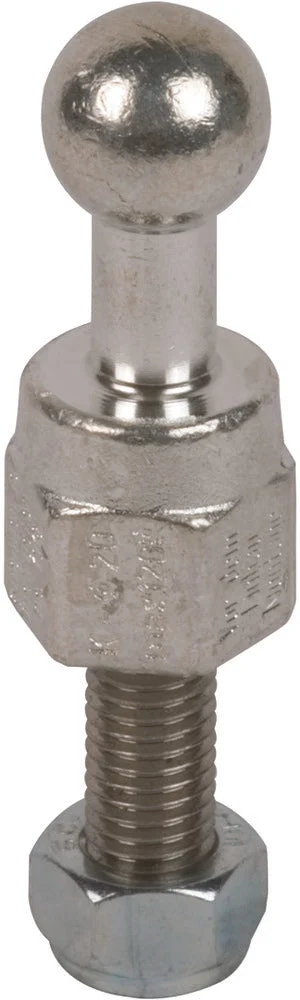

The item is a straight fixed ball point with a diameter of 25mm, featuring a threaded pin and nut. It is designed for use as a phase-side and earth-side point of connection on the conductor and the earthing system, in accordance with EN/IEC 61230 (DIN VDE 0683-100). Offering high mechanical strength, the item’s thread is not cut, making it suitable for fixing cable lugs or connecting busbars as per DIN 43673-1. The maximum short-circuit current is 42kA, with the largest cross-section of copper wire being 150mm². The earthing and short-circuiting point has a diameter of 25mm.
Specifications
Max. short circuit current (kA) : 42
Construction type : Straight
Mounting method : With thread bolt
Connection of the earthing and short circuit device : Fixed ball point 25 mm
Max. wire cross section copper (mm²) : 150
Diameter fixed point (mm) : 25
Suitable for round conductors : No
