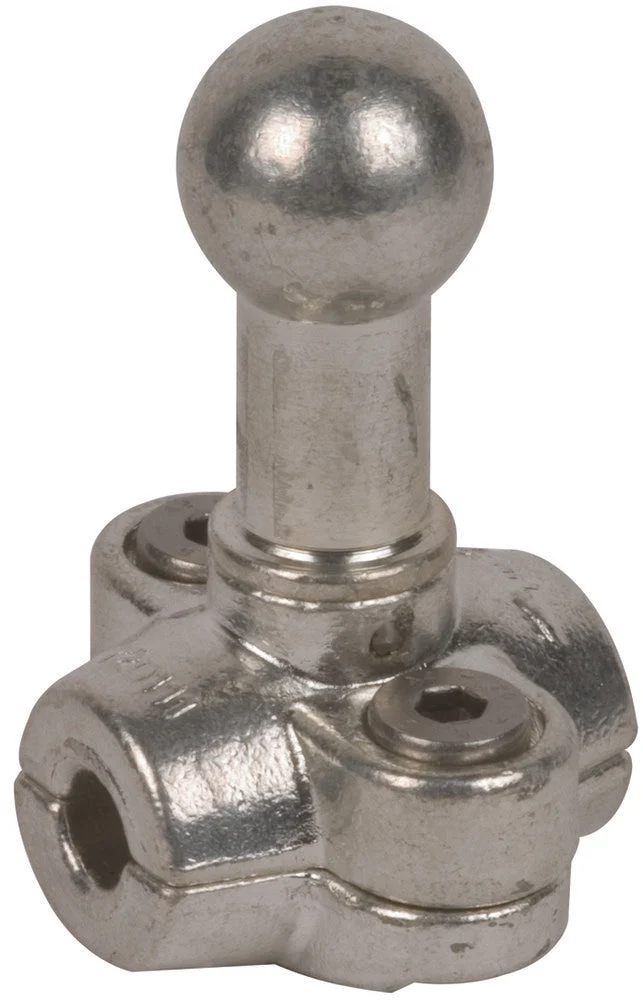

This item is a fixed ball point with a diameter of 20mm, designed for round copper conductors. It is suitable as a phase-side and earth-side point of connection, in line with EN/IEC 61230 (DIN VDE 0683-100), for both the conductor and the earthing system. The ball point’s secure fastening is ensured by stainless steel fixing screws. Withstanding a maximum short circuit current of 26.5kA, it is designed for straight construction, can accommodate an earth and short-circuit ball point of 25mm and a max. copper wire cross-section of 95mm². The ball point’s own diameter is 25mm.
Specifications
Max. short circuit current (kA) : 26.5
Construction type : Straight
Mounting method : For circular conductor
Connection of the earthing and short circuit device : Fixed ball point 25 mm
Max. wire cross section copper (mm²) : 95
Diameter fixed point (mm) : 25
Suitable for round conductors : Yes
