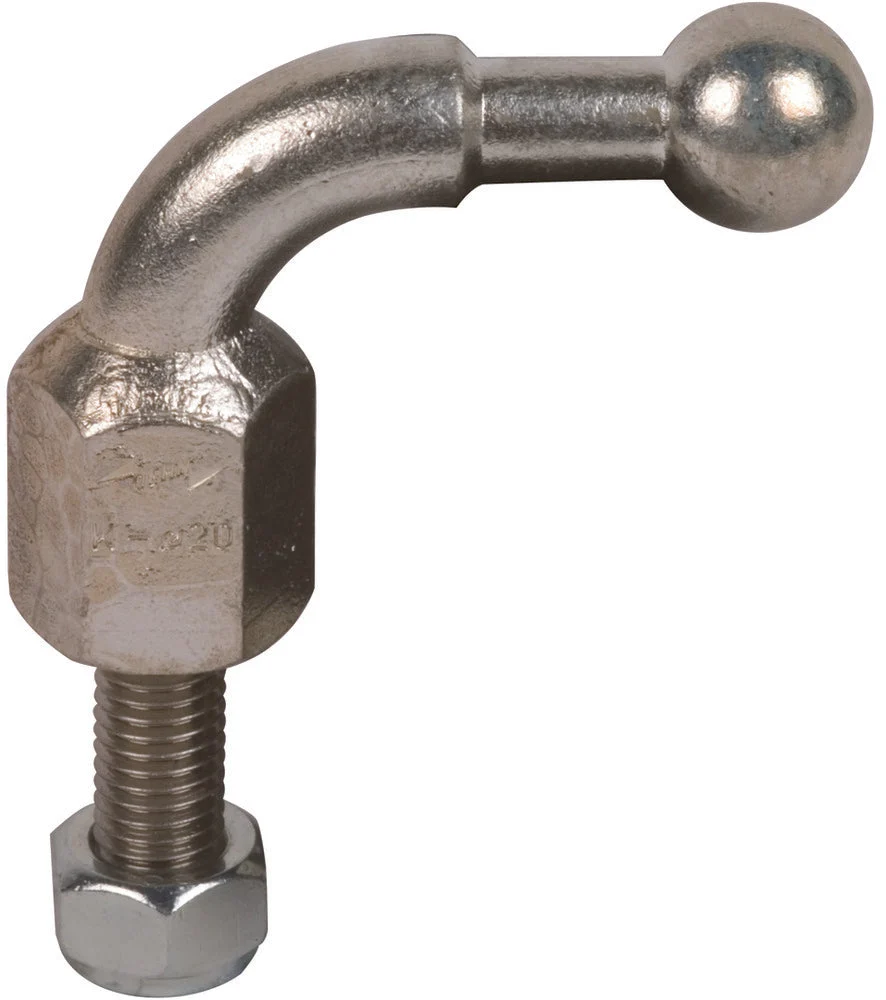

This is a 90° angled fixed ball point with a threaded pin and self-locking nut, to be used as a line and earth connection point in compliance with EN/IEC 61230 (DIN VDE 0683-100). It is designed for the conductor and earth-termination system, with a max short circuit current capacity of 26.5kA. The fixed ball point features a wire bolt and can secure cable lugs or connecting busbars per DIN 43673-1. It has high mechanical strength due to its female thread, which is not cut. The contact point of grounding and short circuit ball point is 25mm, while the max. wire cross-section for copper is 95mm², and the diameter of the fixed point is 25mm.
Specifications
Max. short circuit current (kA) : 26.5
Construction type : Angled
Mounting method : With thread bolt
Connection of the earthing and short circuit device : Fixed ball point 25 mm
Max. wire cross section copper (mm²) : 95
Diameter fixed point (mm) : 25
Suitable for round conductors : No
