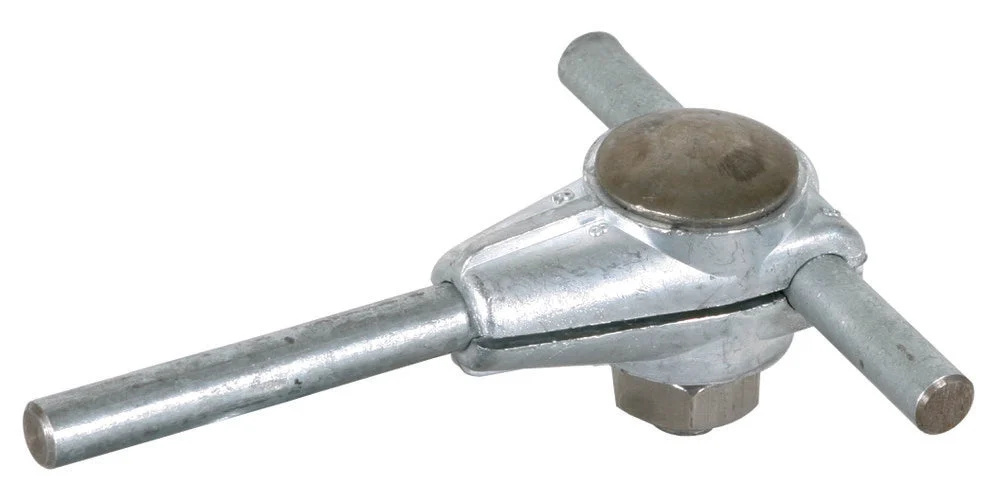

This is a Dehn connector designed for lightning protection with a zinc pressure die-casting. This T-connector, compliant with EN 62561-1 standard, is designed to connect round conductors in a T arrangement. The connector is designed for use with two round conductors, each having a diameter of 8mm. It does not have any surface protection treatment and employs clamping screw type of fastening. With a lightning current capacity of 100kA for 10/350 µs, it does not include surface protection and relies on clamp screws for attachment.
Specifications
Type of connector : T-connector
Diameter round conductor 1 (mm) : 8 mm to 8 mm
Diameter round conductor 2 (mm) : 8 mm to 8 mm
Material : Zinc die-cast
Surface protection : Untreated
Type of fastening screws : Clamp screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
