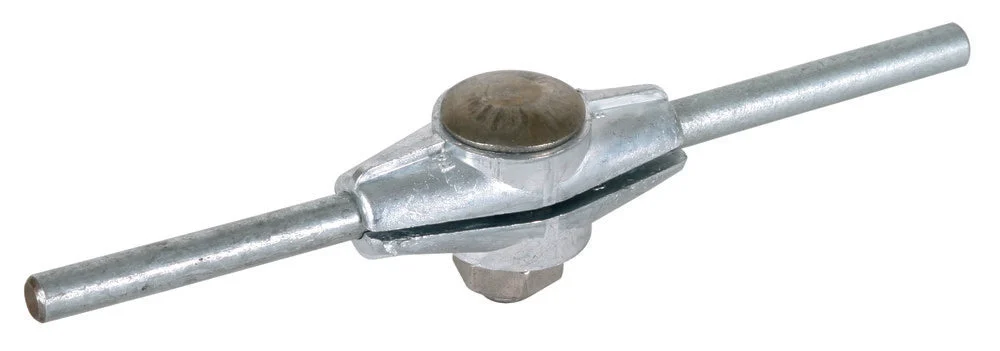

This is a Dehn connector for lightning protection, cast in pressure zinc. The type of connection is a clamp connection, with a diameter for the round conductor 1 and 2 both measuring at 8mm. It does not have any surface protection, therefore it is untreated. The connector utilizes a clamp screw for attachment, adhering to EN 62561-1 standards. It is designed for connecting round conductors in the longitudinal arrangement. Additionally, it has a lightning current carrying capacity of 100kA for a 10/350 µs impulse.
Specifications
Type of connector : Clamp connector
Diameter round conductor 1 (mm) : 8 mm to 8 mm
Diameter round conductor 2 (mm) : 8 mm to 8 mm
Material : Zinc die-cast
Surface protection : Untreated
Type of fastening screws : Clamp screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
