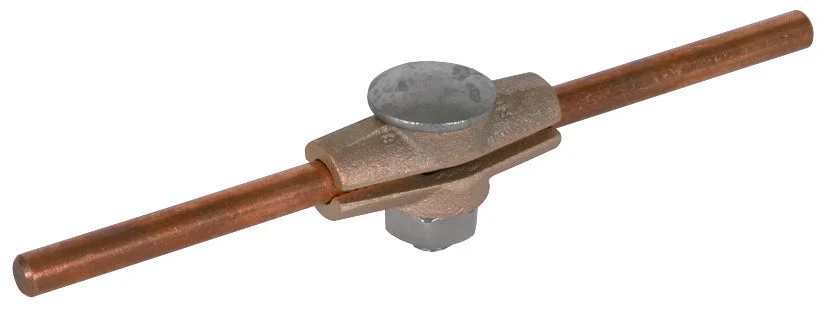

This is a Dehn connector specifically designed for lightning protection. It is made from red cast iron and employs a clamp connection type. It includes one-screw fastening and is compliant with EN 62561-1 standards. This connector is suitable for connecting round conductors of 8mm diameter in a longitudinal arrangement. The surface is left untreated, with no additional protection applied. It features a very high lightning current carrying capacity of 100kA, measured under a 10/350 µs waveform.
Specifications
Type of connector : Clamp connector
Diameter round conductor 1 (mm) : 8 mm to 8 mm
Diameter round conductor 2 (mm) : 8 mm to 8 mm
Material : Red cast iron
Surface protection : Untreated
Type of fastening screws : Clamp screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
