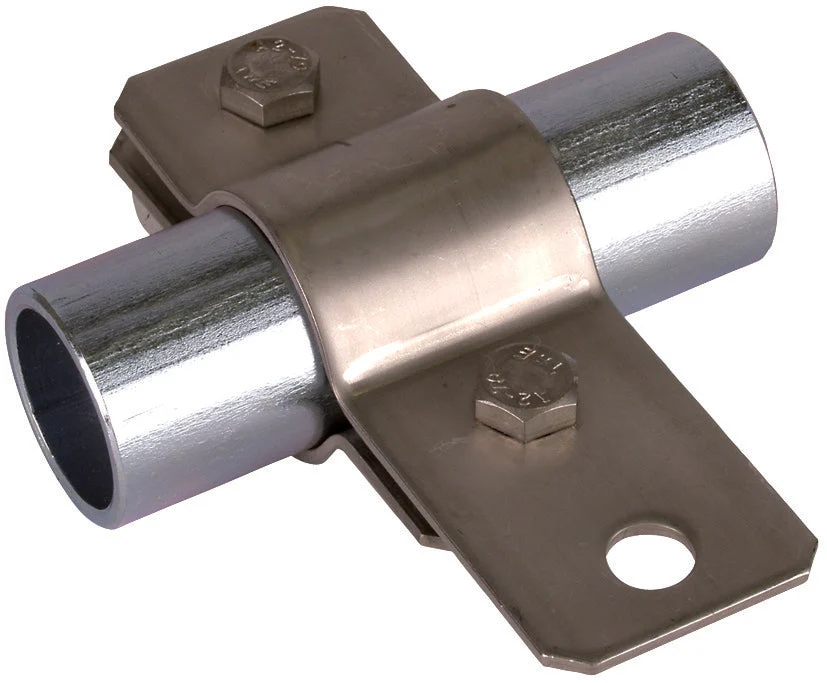

The Earthing pipe clamp lightning protection complies with EN 62561-1 and is designed to integrate pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding as per IEC 62305-3. It features an M8 screw type StSt structure as well as M10 screw connections for flat conductors, complete with nuts. This clamp is suitable for round conductors from 7 to 10 mm, for instance, it can be used with a KS connector.
Specifications
Clamping/chucking range (mm) : 76 mm to 76 mm
Min. clamping range inch : 2 1/2 inch
Max. clamping range inch : 2 1/2 inch
Material : Stainless steel V2A
Surface protection : Untreated
Number of conductors : 1
