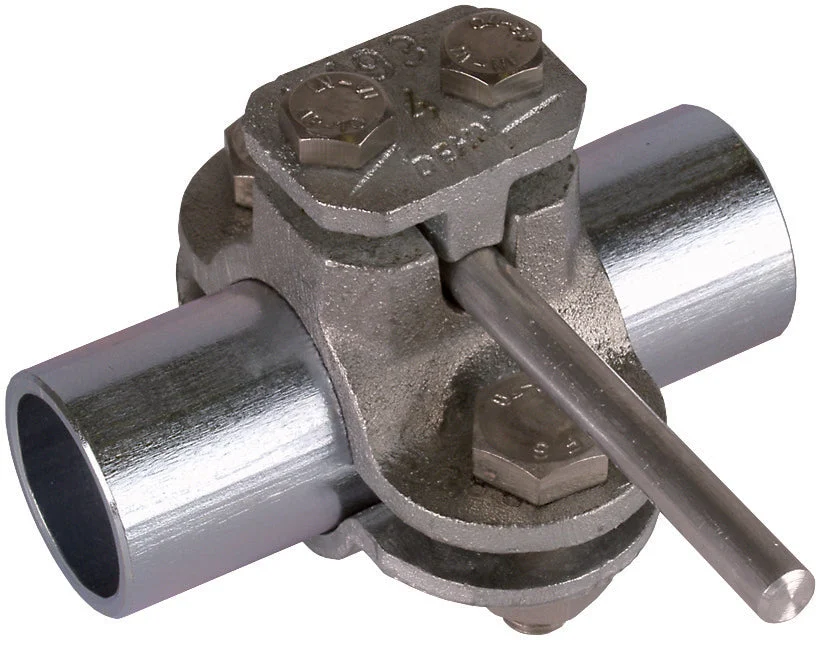

The Dehn pipe earth clamp is made from malleable cast iron with a clamping/spanning range of 34mm and a maximum clamping/spanning range of 1 inch. It is designed to comply with the EN 62561-1 standard for grounding pipe clamps, and specifically intended for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding as per IEC 62305-3. The clamp accommodates a 4 – 70mm² cross-section of the connectable cable, with capacity for 1 conductor. It has a thermally galvanized surface protection, ensuring durability and performance. The clamp also comes with M10 screws and has a connection for Rd 4-10mm. The minimum clamping/spanning range stands at 1 inch.
Specifications
Clamping/chucking range (mm) : 34 mm to 34 mm
Min. clamping range inch : 1 inch
Max. clamping range inch : 1 inch
Material : Malleable cast iron
Surface protection : Hot-dip galvanized
Cross section of the connecting conductors (mm²) : 4 mm² to 70 mm²
Number of conductors : 1
