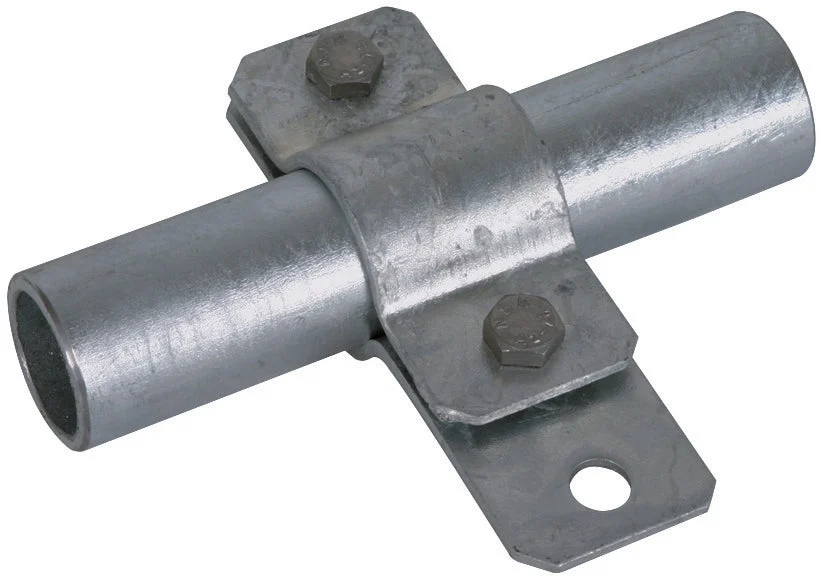

Dehn Earthing Pipe Clamp D21mm With Bore D11mm St/Tzn – 410012

The Earthing pipe clamp lightning protection abides by EN 62561-1 standards, making it ideal for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding as per IEC 62305-3. The type St/tZn features M8 screws and a connection for a flat conductor using M10 screws and nuts. It’s suitable for a round conductor ranging between 7-10 mm, for example, the KS connector.

Specifications

Clamping/chucking range (mm) : 21 mm to 21 mm
Min. clamping range inch : 1/2 inch
Max. clamping range inch : 1/2 inch
Material : Steel
Surface protection : Hot-dip galvanized
Number of conductors : 1
