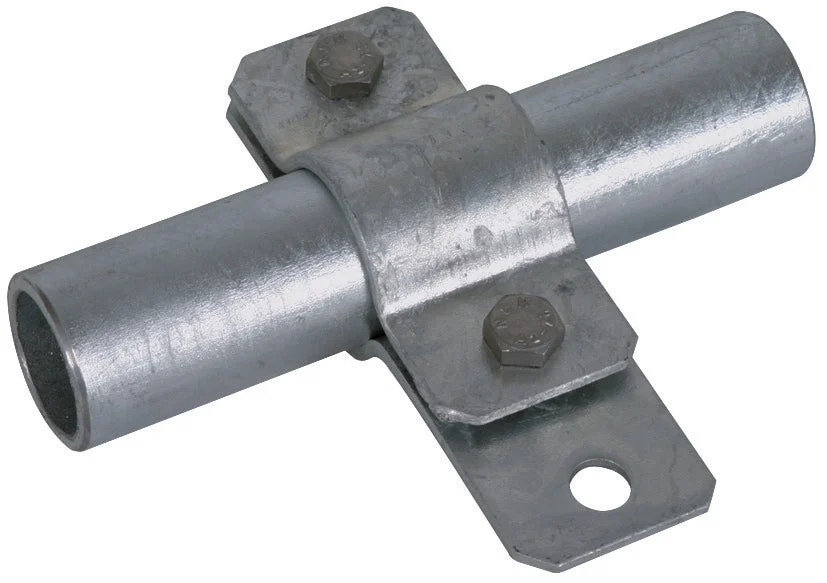

The Earthing pipe clamp lightning protection conforms to EN 62561-1 and is designed to incorporate pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and the lightning equipotential bonding as per IEC 62305-3. It is of type St/tZn and comes with M8 screws. It features connections for flat conductors using M10 screws and nuts. It can accommodate round conductors ranging from 7-10 mm, making it compatible, for example, with KS connectors.
Specifications
Clamping/chucking range (mm) : 17 mm to 17 mm
Min. clamping range inch : 3/8 inch
Max. clamping range inch : 3/8 inch
Material : Steel
Surface protection : Hot-dip galvanized
Number of conductors : 1
