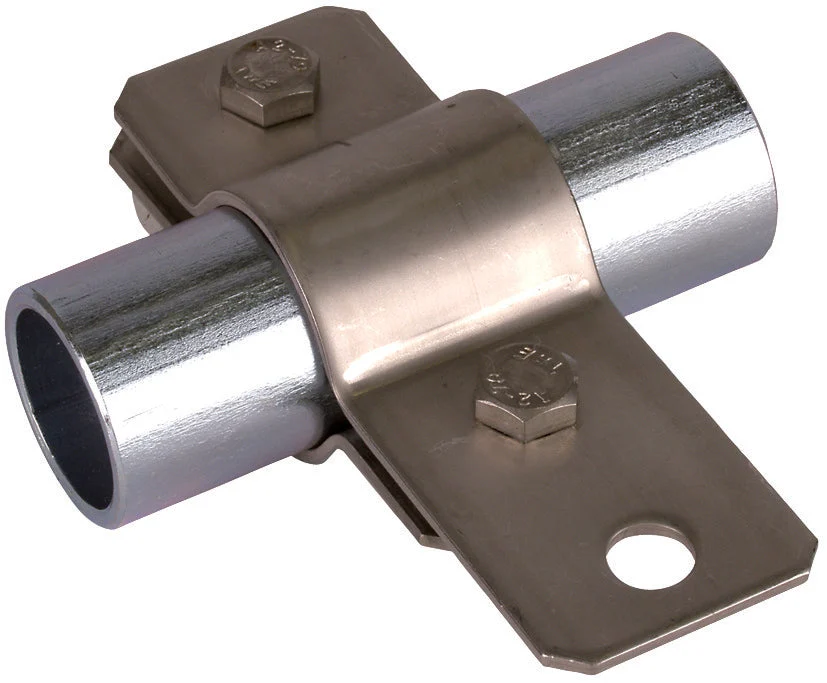

The Earthing pipe clamp offers lightning protection compliant with EN 62561-1. It is designed for integrating pipes into protective and functional equipotential bonding in accordance with standards IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and IEC 62305-3 for lightning equipotential bonding. This type StSt model is equipped with M8 screws for connection to flat conductors through M10 screws and nuts. It is suitable for round conductors with a diameter of 7-10mm, and can, for instance, be paired with a KS connector.
Specifications
Clamping/chucking range (mm) : 89 mm to 89 mm
Min. clamping range inch : 3 inch
Max. clamping range inch : 3 inch
Material : Stainless steel V2A
Surface protection : Untreated
Number of conductors : 1
