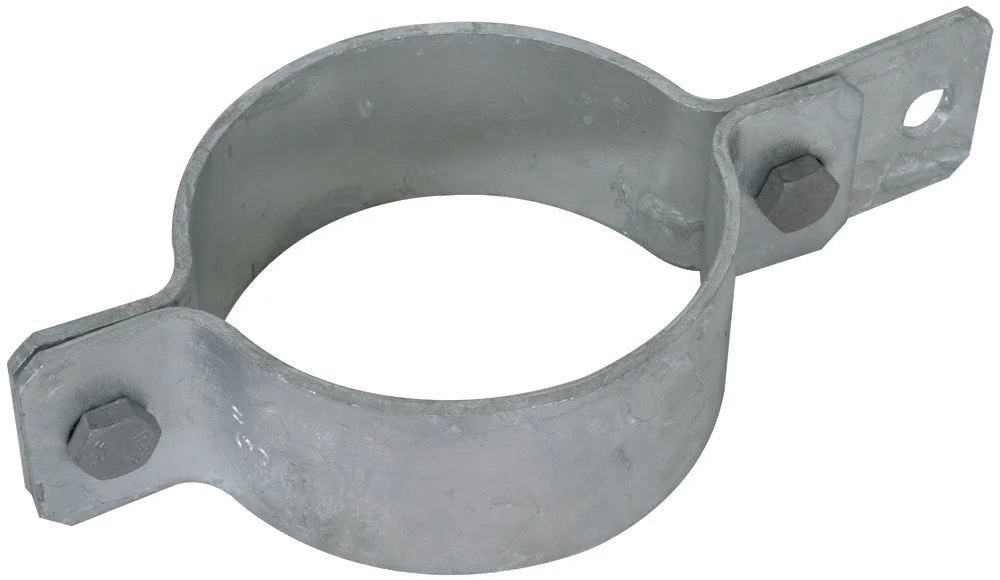

The Earthing pipe clamp for lightning protection is compliant with EN 62561-1 and designed to integrate pipes in the conductive and functional equipotential bonding as per IEC 60364-4-41 and 60364-5-54. The clamp also facilitates the lightning equipotential bonding according to IEC/EN 62305-3. This St/tZn type unit uses M8 screws and can connect flat conductors using M10 screws and nuts. It is suitable for round conductors 7-10mm, for example, when used with a KS connector. Additionally, it can connect the protective spark gap to the service entry mast.
Specifications
Clamping/chucking range (mm) : 89 mm to 89 mm
Min. clamping range inch : 3 inch
Max. clamping range inch : 3 inch
Material : Steel
Surface protection : Hot-dip galvanized
Number of conductors : 1
