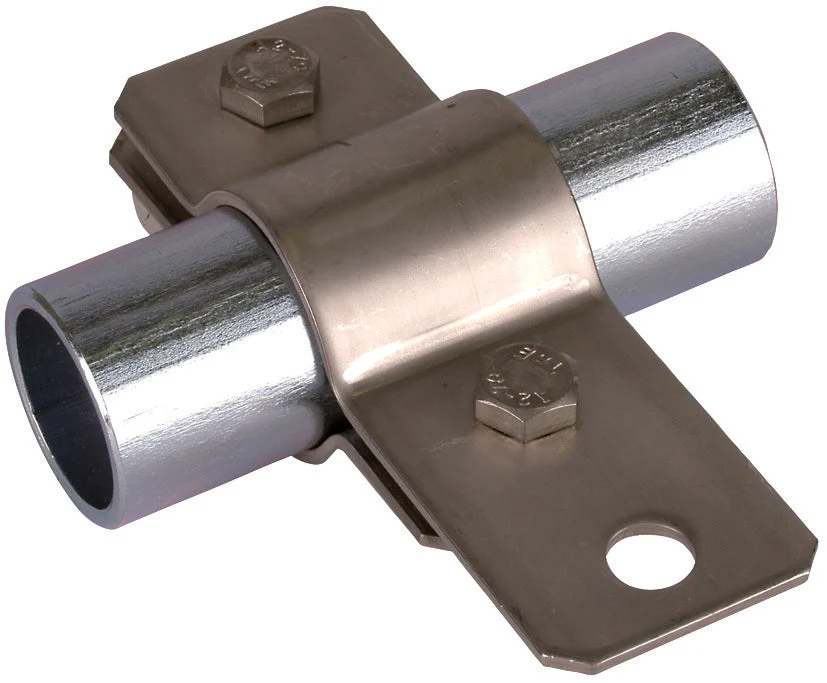

Dehn Earthing Pipe Clamp D 60mm With Bore D 11mm StSt – 410379

The Earthing pipe clamp lightning protection is designed for integrating pipes into the protective and functional equipotential bonding. It is compliant with EN 62561-1, IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540), and features lightning equipotential bonding in accordance with IEC 62305-3. This type StSt model is equipped with M8 screws, and offers connection for a flat conductor with M10 screws and nuts. It is suitable for a round conductor of 7-10 mm, including a KS connector.

Specifications

Clamping/chucking range (mm) : 60 mm to 60 mm
Min. clamping range inch : 2 inch
Max. clamping range inch : 2 inch
Material : Stainless steel V2A
Surface protection : Untreated
Number of conductors : 1
