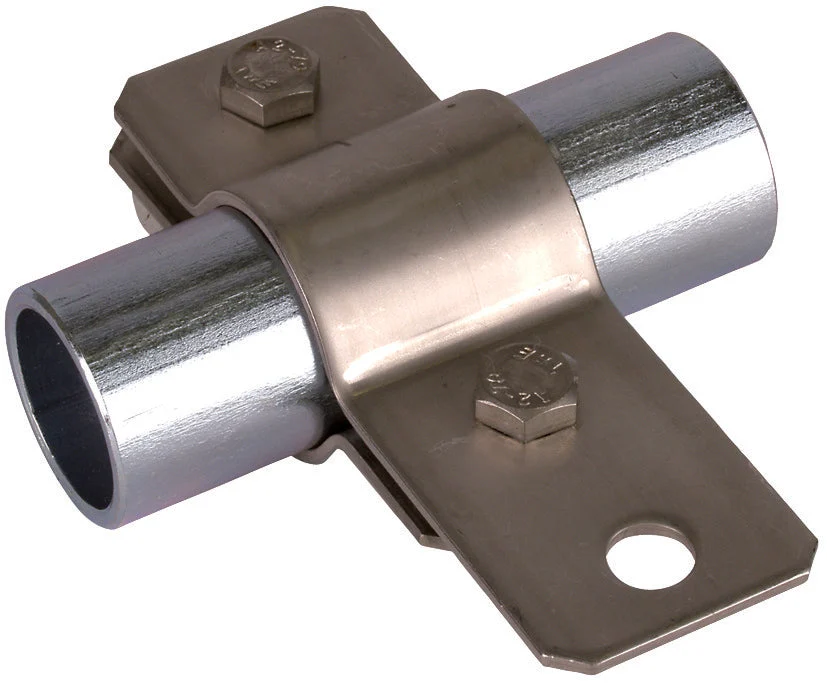

The Earthing pipe clamp lightning protection is designed to incorporate pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and for lightning equipotential bonding as per IEC 62305-3. This Type StSt model uses M8 screws and it features a connection for a flat conductor with M10 screws and nuts. It is compatible with round conductors of 7-10 mm, and provides an optimum fit for KS connectors. This is adhering to EN 62561-1 standards.
Specifications
Clamping/chucking range (mm) : 48 mm to 48 mm
Min. clamping range inch : 1 1/2 inch
Max. clamping range inch : 1 1/2 inch
Material : Stainless steel V2A
Surface protection : Untreated
Number of conductors : 1
