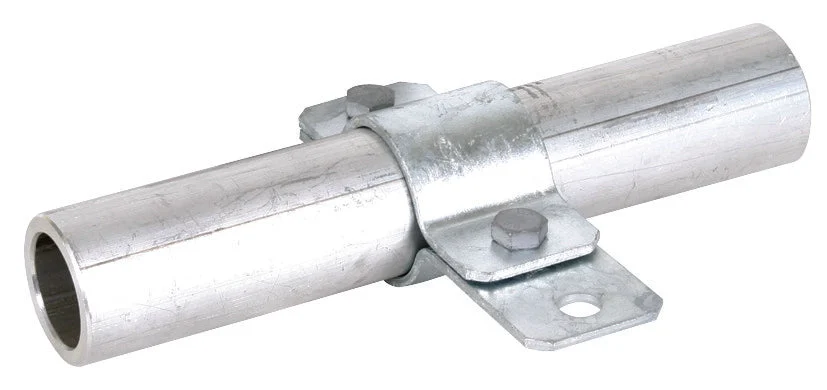

The Earthing pipe clamp is a lightning protection component designed according to EN 62561-1 standards. It aids in integrating pipes into protective and functional equipotential bonding which adheres to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and protects against lightning as per IEC 62305-3 direction. Its type is St/tZn with M8 screws, and it comes with an M10 screw and nut for flat conductor connection. It can be used for a round conductor that measures 7-10 mm, compatible with a KS connector for example.
Specifications
Clamping/chucking range (mm) : 42 mm to 42 mm
Min. clamping range inch : 1 1/4 inch
Max. clamping range inch : 1 1/4 inch
Material : Steel
Surface protection : Hot-dip galvanized
Number of conductors : 1
