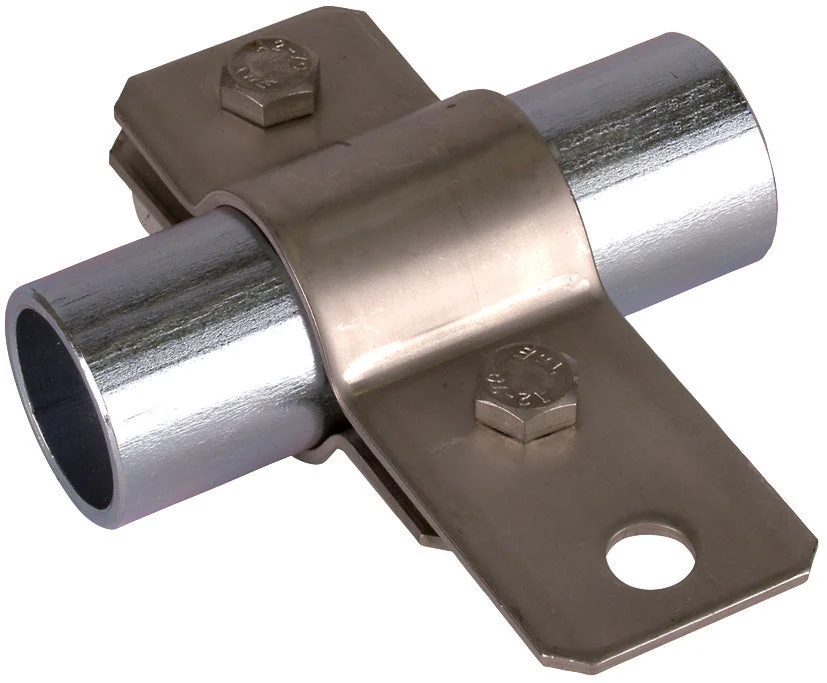

The Earthing pipe clamp lightning protection is in compliance with EN 62561-1 and can be integrated into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and the lightning equipotential bonding as per IEC 62305-3. This clamp is the StSt type equipped with M8 screws and provides a connection for a flat conductor utilizing M10 screws and nuts. It can be used with a round conductor ranging from 7-10 mm, such as a KS connector.
Specifications
Clamping/chucking range (mm) : 42 mm to 42 mm
Min. clamping range inch : 1 1/4 inch
Max. clamping range inch : 1 1/4 inch
Material : Stainless steel V2A
Surface protection : Untreated
Number of conductors : 1
