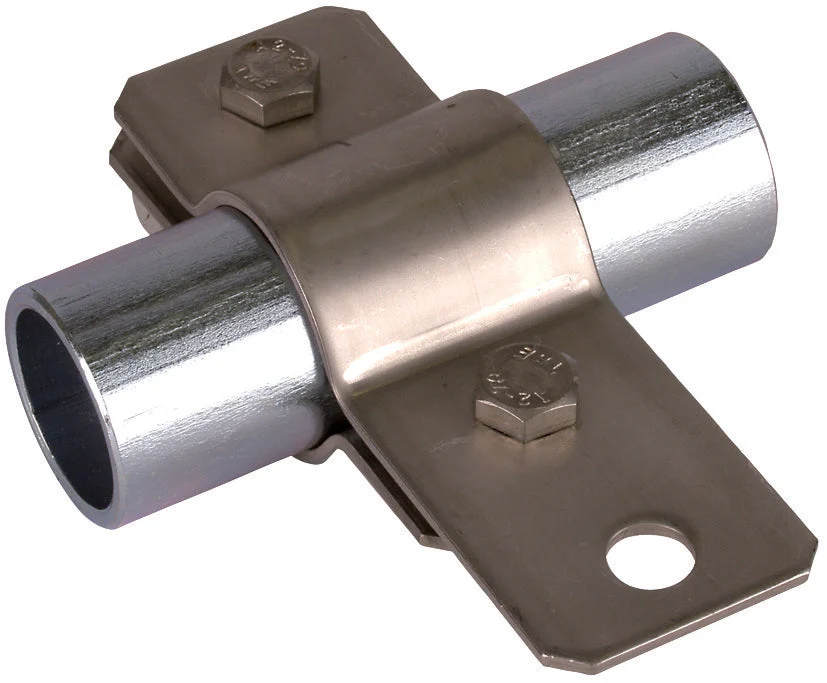

The Earthing pipe clamp for lightning protection complies with EN 62561-1. Its purpose is to integrate pipes into the protective and functional equipotential bonding in accordance with IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and the lightning equipotential bonding according to IEC 62305-3. This type of clamp is made from stainless steel (StSt) and comes with M8 screws. It has a connection for a flat conductor that includes M10 screws and nuts. It can accommodate a round conductor of 7-10mm diameter, for instance, a KS connector.
Specifications
Clamping/chucking range (mm) : 17 mm to 17 mm
Min. clamping range inch : 3/8 inch
Max. clamping range inch : 3/8 inch
Material : Stainless steel V2A
Surface protection : Untreated
Number of conductors : 1
