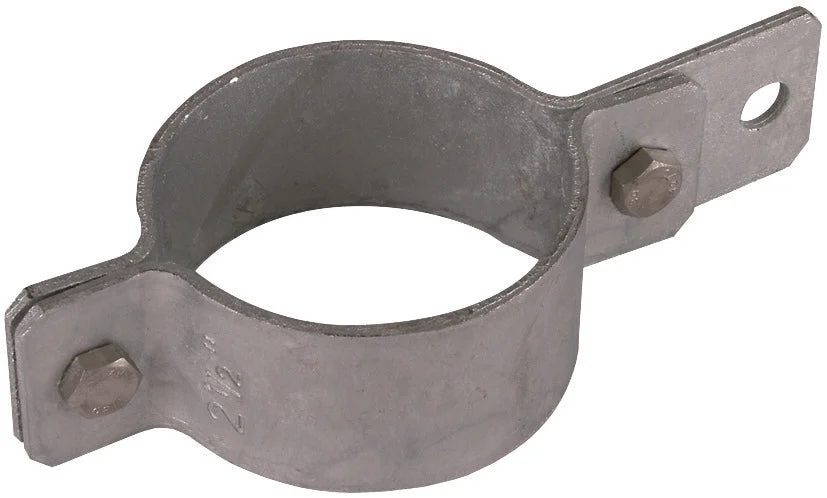

The Earthing pipe clamp serves as a lightning protection measure conforming to EN 62561-1 standards. It is designed to integrate pipes into the protective and functional equipotential bonding in accordance with IEC 60364-4-41 and 60364-5-54 and the lightning equipotential bonding as stipulated by IEC/EN 62305-3. This model, known as St/tZn, is equipped with M8 screws and can be used to connect flat conductors using M10 screws and nuts. It is also suitable for round conductors 7-10 mm in diameter, such as those using a KS connector, and can be used to connect the protective spark gap to the service entry mast.
Specifications
Clamping/chucking range (mm) : 76 mm to 76 mm
Min. clamping range inch : 2 1/2 inch
Max. clamping range inch : 2 1/2 inch
Material : Steel
Surface protection : Hot-dip galvanized
Number of conductors : 1
