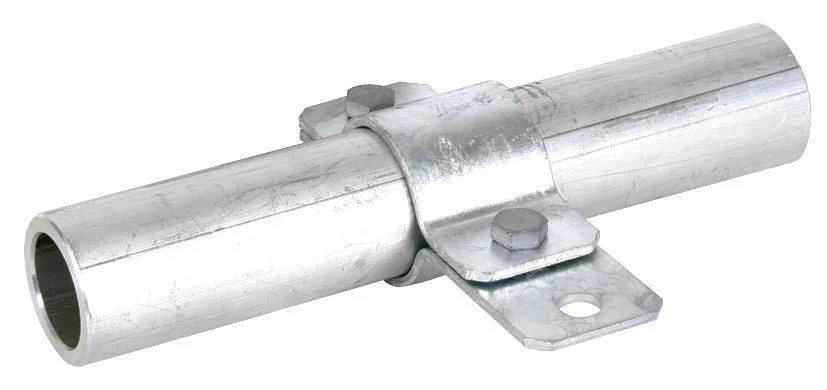

The Earthing Pipe Clamp Lightning Protection adheres to EN 62561-1, integrating pipes into the protective and functional equipotential bonding, as per IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding in accordance with IEC 62305-3. This device is of the St/tZn type and uses M8 screws. It offers a connection for a flat conductor utilizing M10 screws and nuts and is suitable for a round conductor of 7-10 mm, such as a KS connector.
Specifications
Clamping/chucking range (mm) : 48 mm to 48 mm
Min. clamping range inch : 1 1/2 inch
Max. clamping range inch : 1 1/2 inch
Material : Steel
Surface protection : Hot-dip galvanized
Number of conductors : 1
