Dehn Earthing And Short-Circuiting Kit For Cable Distribution – 745901

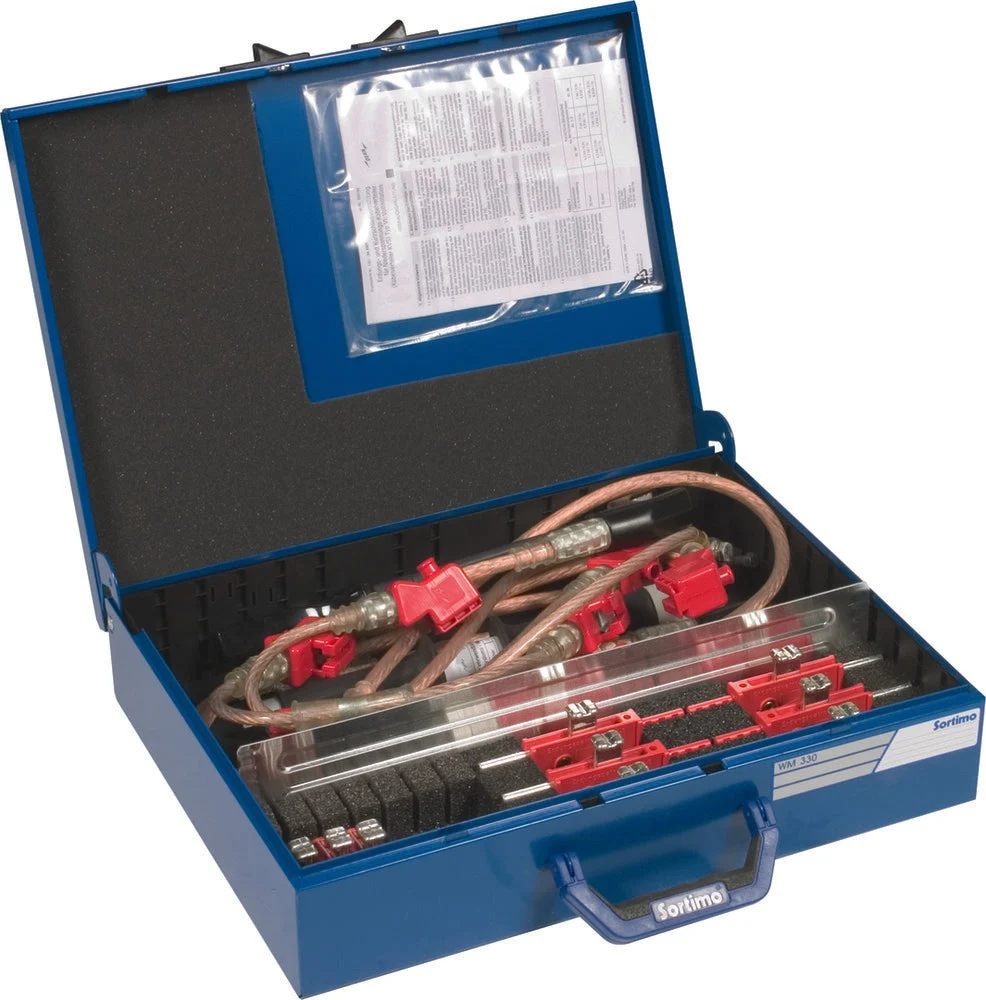

The Dehn VI is a three-pole earthing and short-circuiting device for electrical installations, compliant with EN/IEC 61230 (DIN VDE 0683-100) and EN 50110 (DIN VDE 0105-100). It is designed for the work location and is contained in a sheet metal case. It comes with a partially insulated M10 connection, suitable for low-voltage cable distribution cabinets. It uses a T-connection, with an earthing wire of 500mm and phase wires of lengths 200mm and 400mm, each with a cross-sectional area of 25mm². Other cable lengths can be configured at Dehn’s website.

Specifications

Model : Cable
Number of poles : 3
Max. short circuit current (kA) : 7
Wire cross section, phase-side (mm²) : 25
Wire cross section, earth-side (mm²) : 25
Length phaseline a (mm) : 200
Length phaseline b (mm) : 400
Length phaseline c (mm) : 600
Length earth line (mm) : 500
Connecting part, phase-side : T-connection for earthing cartridge
Connecting part, earth-side : Other
Fully insulated : Yes
