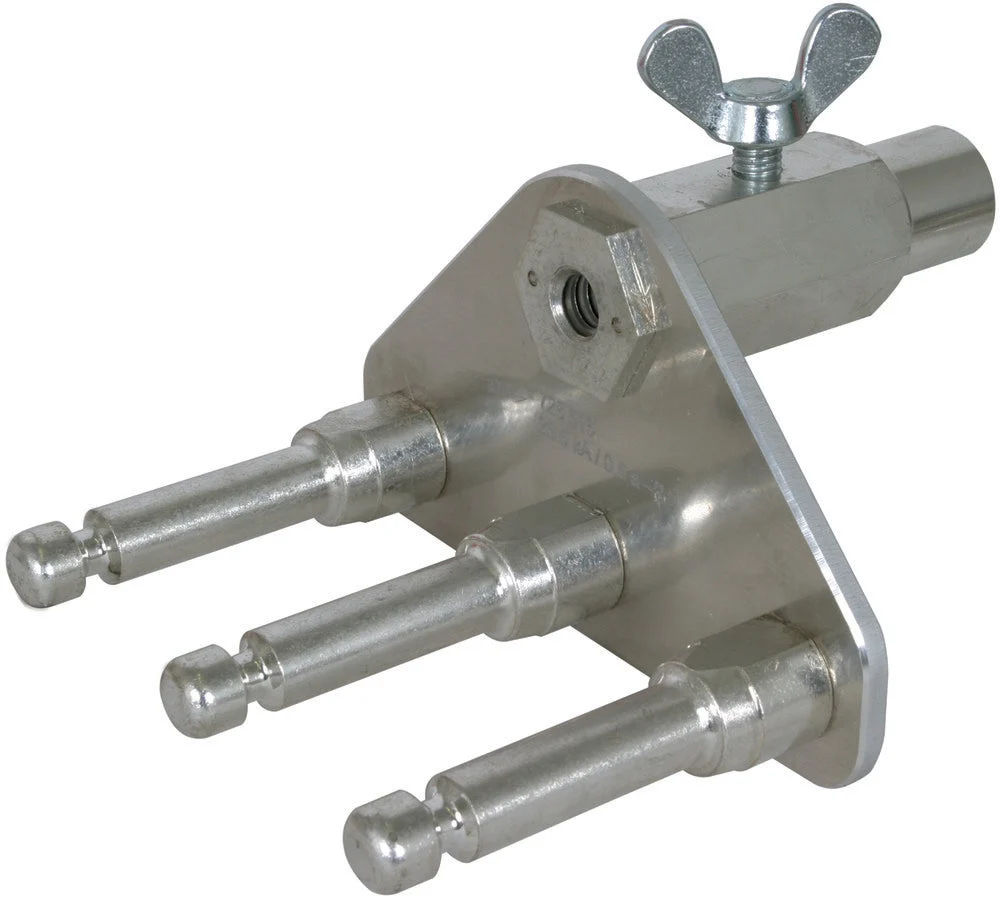

This is an earth connecting plate with a built-in earth bushing and three fixed earthing points, each equipped with a 16mm ring groove as per EN/IEC 61230 (DIN VDE 0683-100). It serves as a simple connection for single-pole, short-circuiting cables that can withstand a maximum short-circuit current of 26.5kA. The device allows a maximum wire cross-section of 95mm² for copper and maintains a straight construction. The diameter of the fixed point is 16mm. Notable for its high short-circuit current carrying capacity.
Specifications
Max. short circuit current (kA) : 26.5
Construction type : Straight
Mounting method : Other
Connection of the earthing and short circuit device : Radial groove 16 mm
Max. wire cross section copper (mm²) : 95
Diameter fixed point (mm) : 16
Suitable for round conductors : No
