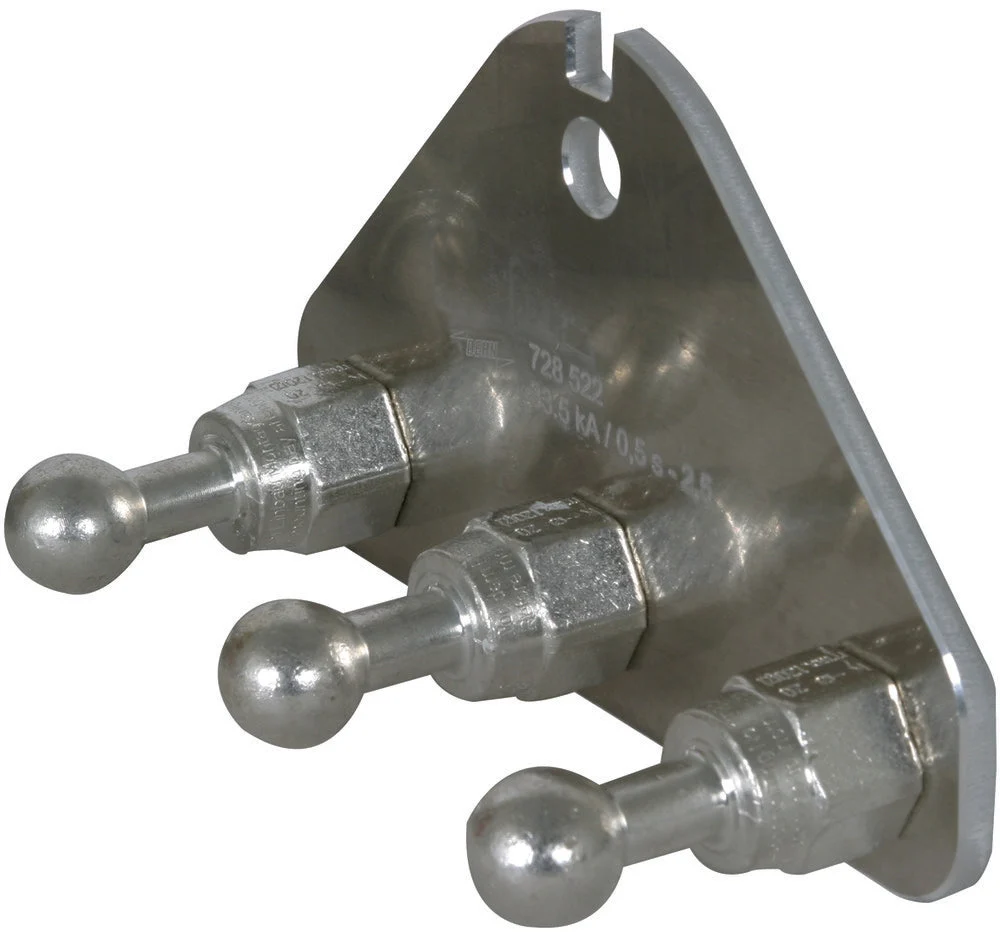

This is an earth connecting plate designed for mounting on earth connecting clamps, furnished with an anti-rotation element (PK1), and comes with three fixed ball points to function as a connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100). It facilitates easy connection of short-circuiting cables (single-pole) and boasts a high short-circuit current carrying capacity of maximum short-circuit current 33.5kA. Its specifications include a straight structure with a connecting point diameter of 20mm, the maximum wire cross-section of copper being 120mm², and containing a connection for grounding and short-circuit ball point of 20mm.
Specifications
Max. short circuit current (kA) : 33.5
Construction type : Straight
Mounting method : With connector lug
Connection of the earthing and short circuit device : Fixed ball point 20 mm
Max. wire cross section copper (mm²) : 120
Diameter fixed point (mm) : 20
Suitable for round conductors : No
