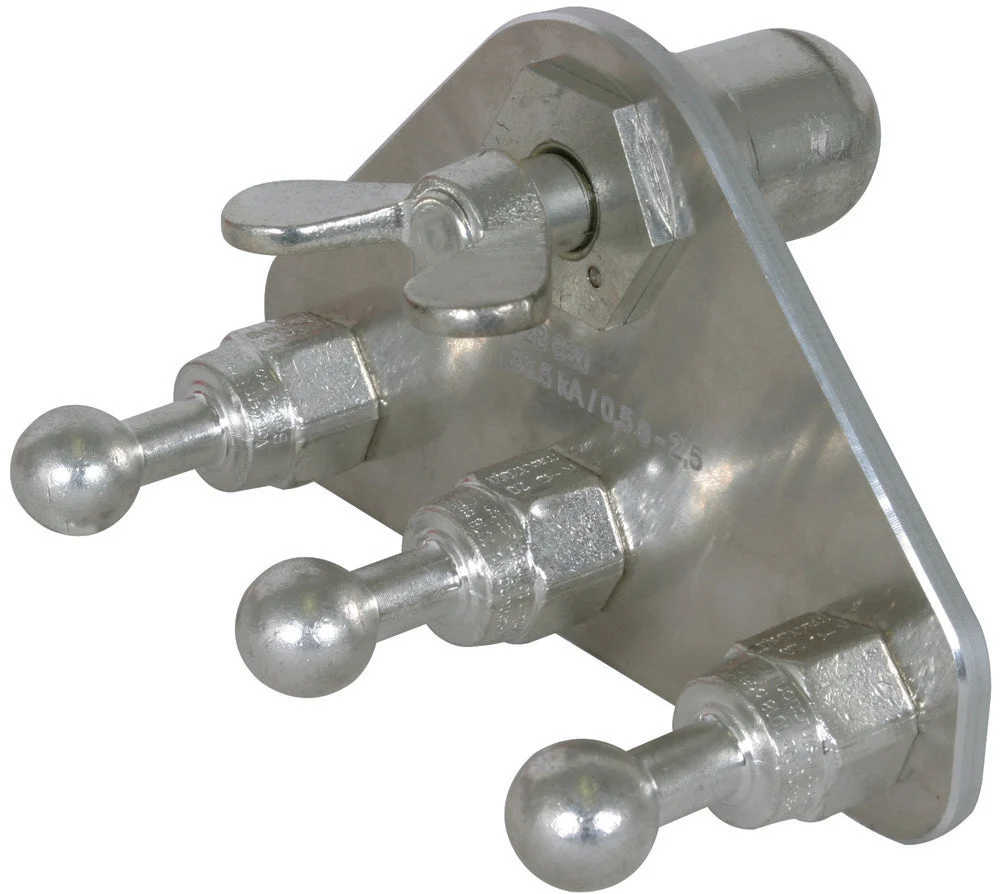

This is an earth connecting plate equipped with a ball head cap and three fixed ball points, designed for use as a connection point in compliance with EN/IEC 61230 (DIN VDE 0683-100). This component allows for easy, single-pole connection of short-circuiting cables. It confidently withstands a maximum short-circuit current capacity of 42kA. Characterized by its straight construction, the item has a connecting point for earth fittings and short-circuit devices of 25mm. Furthermore, it can handle a maximum wire section of copper up to 150mm², with the diameter of the fixed point being 25mm.
Specifications
Max. short circuit current (kA) : 42
Construction type : Straight
Mounting method : Other
Connection of the earthing and short circuit device : Fixed ball point 25 mm
Max. wire cross section copper (mm²) : 150
Diameter fixed point (mm) : 25
Suitable for round conductors : No
