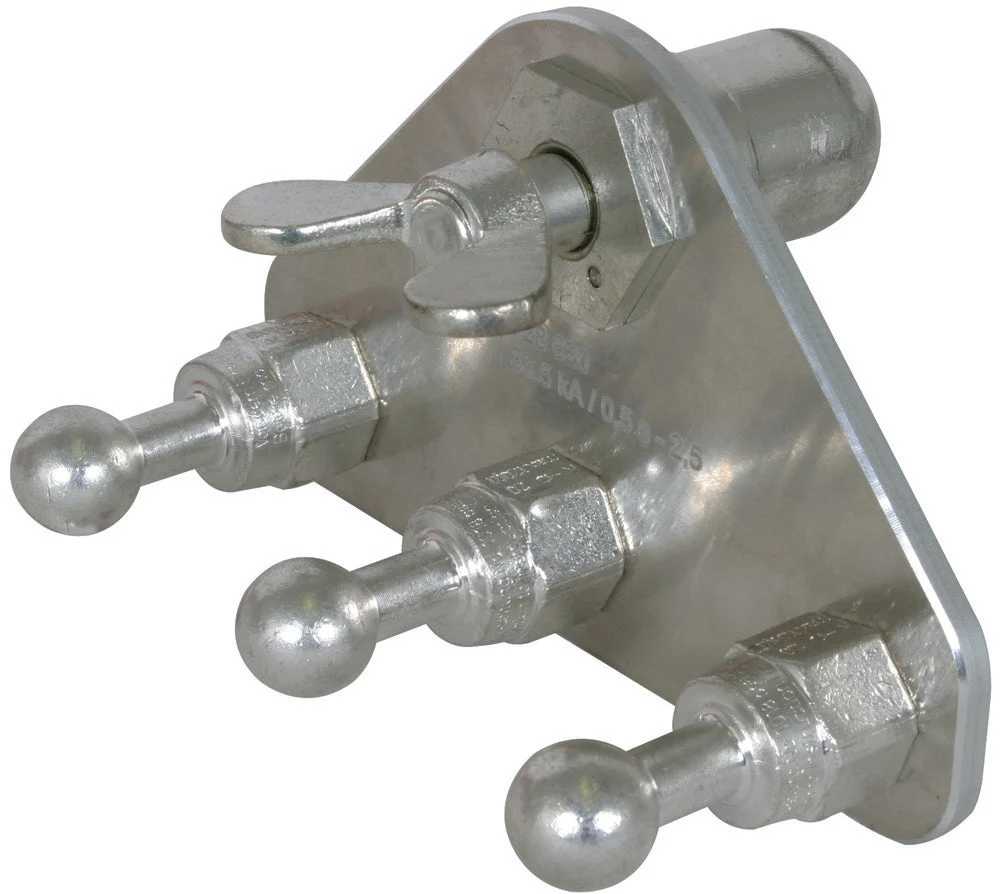

This is an earth connecting plate featuring a ball head cap and three fixed ball points, designed for use as a connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) standards. It ensures simple, single-pole connection of the short-circuiting cables and offers a maximum short-circuit current capacity of 33.5kA. The grounding and short-circuiting connection point is ball-proof and measures 20mm in diameter. The device accommodates a maximum wire cross-section of 120mm² for copper and features a straight construction.
Specifications
Max. short circuit current (kA) : 33.5
Construction type : Straight
Mounting method : Other
Connection of the earthing and short circuit device : Fixed ball point 20 mm
Max. wire cross section copper (mm²) : 120
Diameter fixed point (mm) : 20
Suitable for round conductors : No
