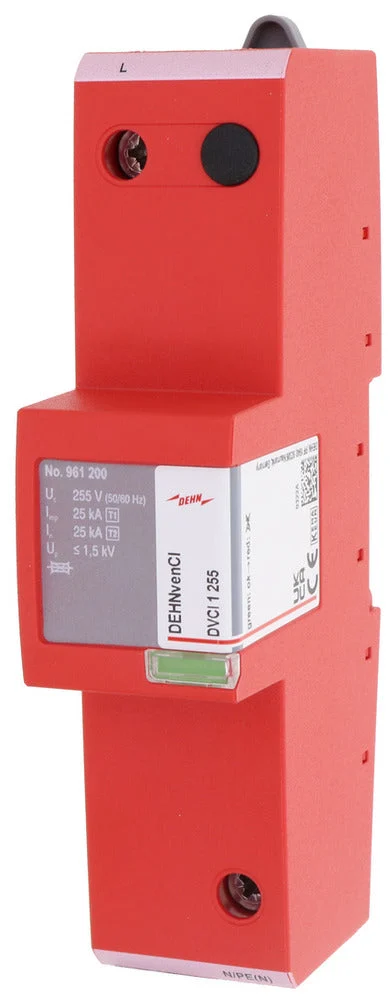

The DEHNvenCI is a single-pole combined lightning current and surge arrester of types 1 and 2, in accordance with EN 61643-11. It is fitted with an integrated back-up fuse and features RADAX FLOW follow current limitation for maximum availability. This device is capable of protecting terminal equipment and safeguards low-voltage consumer installations against surges and direct lightning strikes. It is designed to be installed in compliance with the lightning protection zone concept at the boundaries from 0A – 2. The arrester has a nominal voltage of 230V and a maximum continuous AC voltage of 255V. Its design is such that it fits on a DIN rail and is 4 TE in size.
Specifications
System configuration DC : No
System configuration IT : No
System configuration TN : Yes
System configuration TN-C : Yes
System configuration TN-C-S : Yes
System configuration TN-S : Yes
System configuration TT : Yes
System configuration other : No
Number of poles : 1
Lightning impulse current (10/350 µs) (kA) : 25
Max. continuous voltage AC (V) : 255
Nominal voltage AC (V) : 230
Voltage protection level (kV) : 1.5
Follow current extinguishing capability (kA) : 50
Specific energy (W/R) (kJ/Ohm) : 156.25
Mounting method : DIN rail (top hat rail) 35 mm
Construction size : 2 modular spacing
Max. conductor cross section solid (solid, stranded) (mm²) : 50
Max. conductor cross section flexible (fine-strand) (mm²) : 35
Remote signalling : No
Signalling at the device : Optic
Test class : Type 1 + 2
Integrated backup fuse : Yes
Energy-coordinated protection effect with regard to the terminal equipment : Yes
Voltage switching spark gap technology : Yes
Overcurrent protected voltage tapping : No
Degree of protection (IP) : IP20
