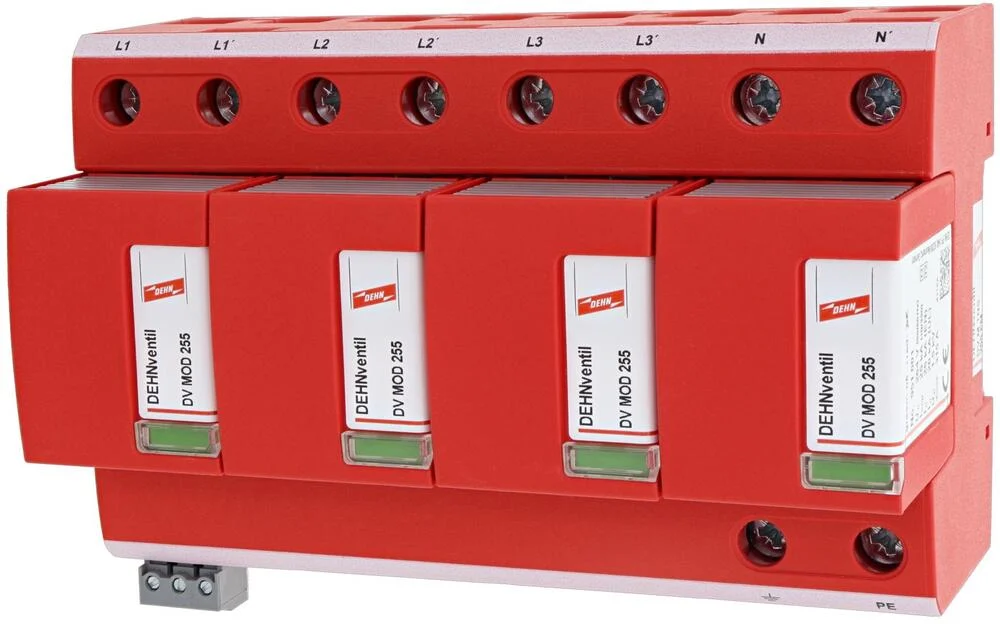

The DEHNventil is a multipole, modular surge arrester, type 1 and type 2, according to EN 61643-11, with spark-gap-based combined lightning current protection. It comprises a base and pluggable protection modules. With a maximum continuous voltage of AC 264V, nominal voltage of AC 230V, and DC 255V, it provides a safety level of 1.5kV. It features RADAX Flow follow current limitation for maximum availability, making it capable of protecting terminal equipment. Designed for protecting low-voltage consumer’s installations, it is robust against surges and even direct lightning strikes. Conforms to the lightning protection zone concept at the boundaries from 0A – 2.
Specifications
System configuration DC : No
System configuration IT : No
System configuration TN : No
System configuration TN-C : No
System configuration TN-C-S : No
System configuration TN-S : Yes
System configuration TT : No
System configuration other : No
Number of poles : 4
Lightning impulse current (10/350 µs) (kA) : 100
Max. continuous voltage AC (V) : 264
Nominal voltage AC (V) : 230
Voltage protection level (kV) : 1.5
Voltage protection level L-N (kV) : 1.5
Voltage protection level L-PE (kV) : 1.5
Voltage protection level N-PE (kV) : 1.5
Follow current extinguishing capability (kA) : 50
Specific energy (W/R) (kJ/Ohm) : 2500
Max. overcurrent protection device, parallel connection (fuse) (A) : 315
Max. overcurrent protection device, series connection (fuse) (A) : 125
Mounting method : DIN rail (top hat rail) 35 mm
Construction size : 8 modular spacing
Max. conductor cross section solid (solid, stranded) (mm²) : 50
Max. conductor cross section flexible (fine-strand) (mm²) : 35
Remote signalling : Yes
Signalling at the device : Optic
Test class : Type 1 + 2
Integrated backup fuse : No
Energy-coordinated protection effect with regard to the terminal equipment : Yes
Voltage switching spark gap technology : Yes
Overcurrent protected voltage tapping : No
Degree of protection (IP) : IP20
