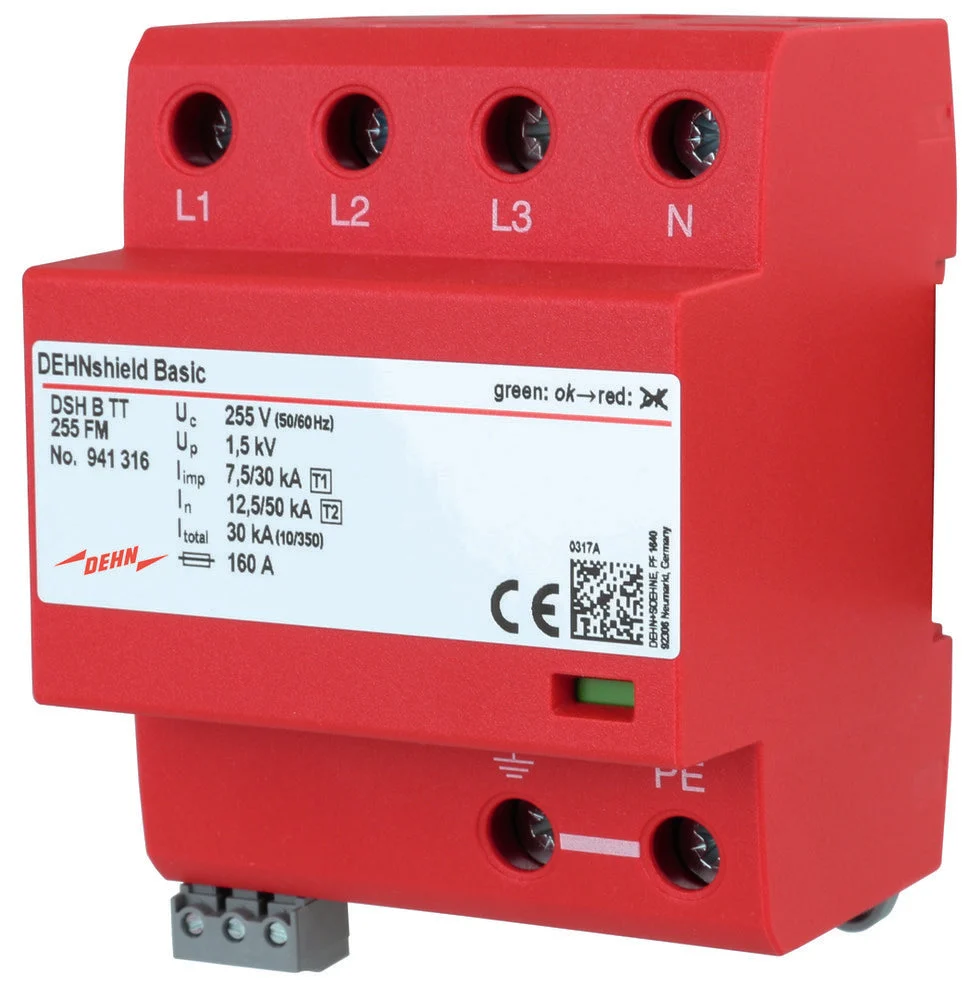

The DEHNshield Basic is a multipole, spark-gap-based combined lightning current and surge arrester meeting standards of EN 61643-11 and IEC 60364-5-53 and IEC 60364-4-44. It features a compact design due to its space-saving spark gap technology occupying only 1 module/pole, suitable for use in retrofit or refurbished residential buildings for injury protection to terminal equipment. This 4-pole device’s key features include a lightning impulse current (10/350) of 30kA, maximum continuous voltage of 255V AC, and nominal voltage of 230V AC. Its safety levels are rated at 1.5kV, with a follow-current extinguishing capability of 25kA. Can be positioned at the origin of the electrical installation.
Specifications
System configuration DC : No
System configuration IT : No
System configuration TN : No
System configuration TN-C : No
System configuration TN-C-S : No
System configuration TN-S : Yes
System configuration TT : Yes
System configuration other : No
Number of poles : 4
Lightning impulse current (10/350 µs) (kA) : 30
Max. continuous voltage AC (V) : 255
Nominal voltage AC (V) : 230
Voltage protection level (kV) : 1.5
Voltage protection level L-N (kV) : 1.5
Voltage protection level N-PE (kV) : 1.5
Follow current extinguishing capability (kA) : 25
Max. overcurrent protection device, parallel connection (fuse) (A) : 160
Max. overcurrent protection device, series connection (fuse) (A) : 100
Mounting method : DIN rail (top hat rail) 35 mm
Construction size : 4 modular spacing
Max. conductor cross section solid (solid, stranded) (mm²) : 35
Max. conductor cross section flexible (fine-strand) (mm²) : 25
Remote signalling : Yes
Signalling at the device : Optic
Test class : Type 1 + 2
Integrated backup fuse : No
Energy-coordinated protection effect with regard to the terminal equipment : Yes
Voltage switching spark gap technology : Yes
Overcurrent protected voltage tapping : No
Degree of protection (IP) : IP20
