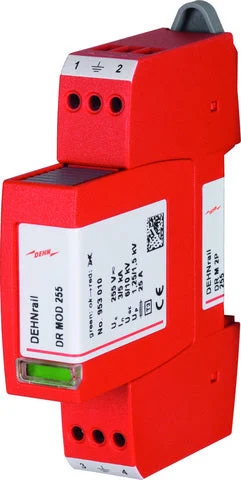

Dehn DEHNrail mains surge protector, red, pole design 2, protection class 3(d), DRA (DIN rail adapter), DIN rail module design, rated voltage 230V, DIN size 4 TE (Grid Size).
Specifications
Nominal discharge surge current (8/20) (kA) : 5
Nominal voltage AC (V) : 230
Max. continuous voltage AC (V) : 255
Max. continuous voltage DC (V) : 255
Voltage protection level (kV) : 1.5
Voltage protection level L-N (kV) : 1.25
Max. overcurrent protection device, parallel connection (fuse) (A) : 25
Max. overcurrent protection device, series connection (fuse) (A) : 25
Mounting method : DIN rail (top hat rail) 35 mm
Construction size : 4 modular spacing
Max. conductor cross section solid (solid, stranded) (mm²) : 4
Max. conductor cross section flexible (fine-strand) (mm²) : 2.5
With remote signalling contact : No
Signalling at the device : Optic
Degree of protection (IP) : IP20
