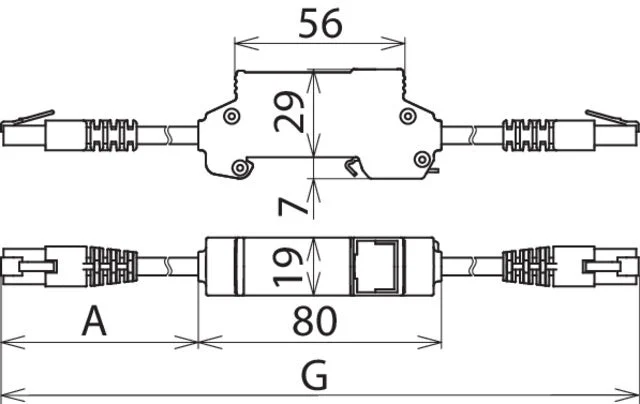

DEHN DEHNpatch Surge Protection For Data/M&R – 929100

Dehn DEHNpatch surge protection for data/m&r, rated voltage DC 48V, DIN rail 35mm, data line RJ45 data protection type, connector 1 RJ45, limit frequency 250MHz, impedance 1Ohm, max continuous voltage AC 34V, max continuous voltage DC 48V, max residual voltage 0.19kV, rated load current 1A.

Specifications

Nominal voltage DC (V) : 48 V to 48 V
Max. continuous voltage AC (V) : 34
Max. continuous voltage DC (V) : 48
Nominal discharge surge current (8/20) (kA) : 10
Lightning impulse current (10/350 µs) (kA) : 1
Nominal load current (A) : 1
Voltage protection level core/core (V) : 145
Voltage protection level core/earth (V) : 500
Limiting frequency (MHz) : 250
Mounting method : DIN rail (top hat rail) 35 mm
Connection 1 : RJ45
Pro-active thermo-control : No
With remote signalling contact : No
Explosion-tested version : No
Signal disconnection : No
Number of conductors (without earthing) : 8
Earthing via : DIN rail (top hat rail)
Assembly width (mm) : 19
Degree of protection (IP) : IP20
