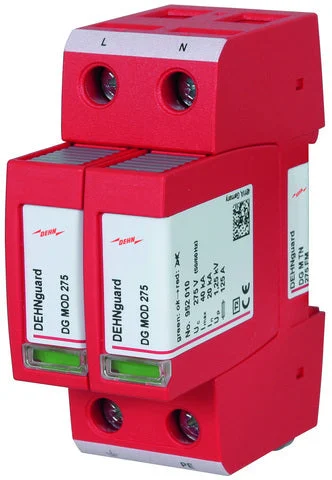

DEHN DEHNguard Mains Surge Protector – 952205

Dehn DEHNguard M mains surge protector, red, pole design 1, protection class 2(c), mains form TN, with signaling contact, DIN rail 35mm, DIN rail module design, rated voltage 230V, max. Continuous voltage AC 275V, degree of protection (IP) IP20, DIN size 2 TE (Grid size), short-circuit proof.

Specifications

System configuration DC : No
System configuration IT : No
System configuration TN : Yes
System configuration TN-C : No
System configuration TN-C-S : No
System configuration TN-S : No
System configuration TT : No
System configuration other : No
Number of conductors (without earthing) : 2
Nominal discharge surge current (8/20) (kA) : 20
Max. discharge surge current (8/20) (kA) : 40
Nominal voltage AC (V) : 230
Max. continuous voltage AC (V) : 275
Voltage protection level (kV) : 1.5
Voltage protection level N-PE (kV) : 1.5
Max. overcurrent protection device, parallel connection (fuse) (A) : 125
Max. overcurrent protection device, series connection (fuse) (A) : 100
Short-circuit breaking capacity (Isccr) (kA) : 50
Integrated short-circuit protection : No
Integrated backup fuse : No
Leakage-current free : No
Mounting method : DIN rail (top hat rail) 35 mm
Construction size : 2 modular spacing
Max. conductor cross section solid (solid, stranded) (mm²) : 35
Max. conductor cross section flexible (fine-strand) (mm²) : 25
With remote signalling contact : Yes
Signalling at the device : Optic
Category type 2 : Yes
Degree of protection (IP) : IP20
