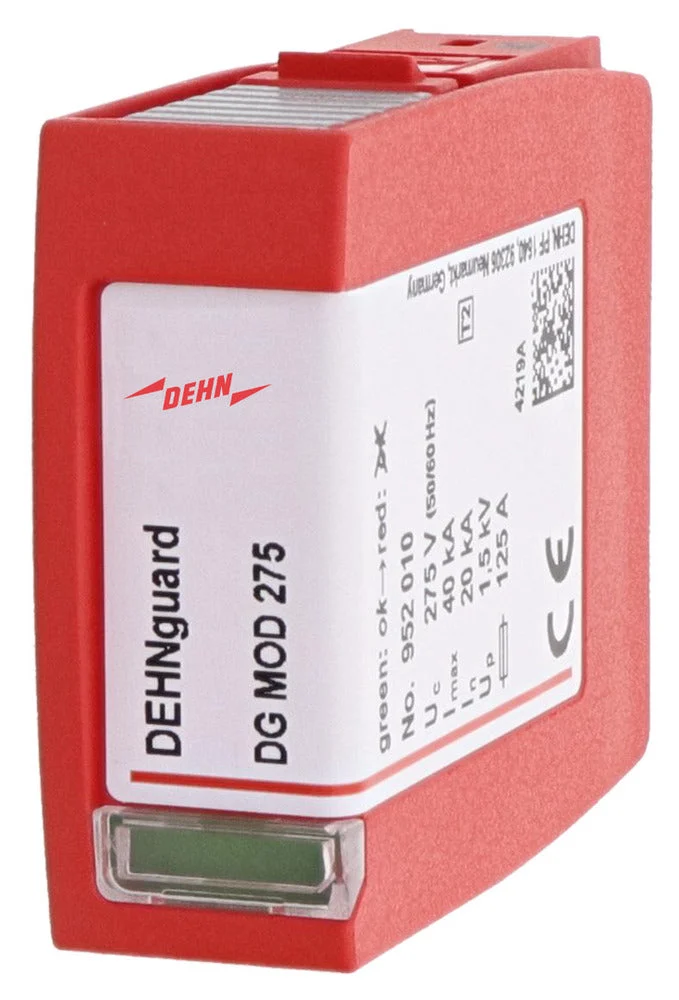

DEHN DEHNguard Mains Surge Protector – 952010

Dehn DEHNguard mains surge protector, red, pole design 1, protection class 2(c), on basic element, plug-in design, rated voltage 230V, max. Continuous voltage AC 275V, DIN size 1 TE (Grid size), max. Continuous voltage DC 350V, max. Discharge surge current (8/20) 40kA.

Specifications

System configuration DC : No
System configuration IT : No
System configuration TN : No
System configuration TN-C : No
System configuration TN-C-S : No
System configuration TN-S : No
System configuration TT : No
System configuration other : No
Nominal discharge surge current (8/20) (kA) : 20
Max. discharge surge current (8/20) (kA) : 40
Nominal voltage AC (V) : 230
Max. continuous voltage AC (V) : 275
Max. continuous voltage DC (V) : 350
Voltage protection level (kV) : 1.25
Integrated short-circuit protection : No
Integrated backup fuse : No
Leakage-current free : No
Mounting method : On basic element
Construction size : 1 modular spacing
With remote signalling contact : No
Signalling at the device : Optic
Category type 2 : Yes
