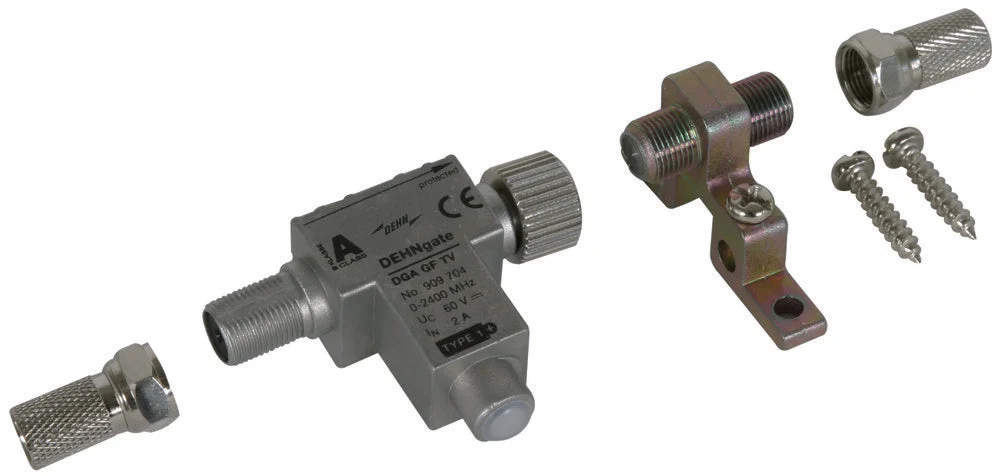

The DEHNgate surge protector by Dehn is designed for data and M&R applications, specifically for TV/radio line protection. It features an F-connector, operates at a frequency of 24,000,000MHz, and has an impedance of 75 Ohms. Its maximum residual voltage is 0.7kV and it has a nominal discharge current (8/20) of 10kA. This lightning current arrester is suitable for 75 Ohm satellite and broadband cable systems, meeting Class A shielding requirements as per EN 50083-2. It boasts a compact design for space-efficient installation in all common TV and satellite applications.
Specifications
Nominal voltage DC (V) : 60
Max. continuous voltage DC (V) : 60
Lightning impulse current (10/350 µs) (kA) : 2.5
Nominal discharge surge current (8/20) (kA) : 10
Nominal load current (A) : 2
Voltage protection level (V) : 700
Frequency (MHz) : 0 MHz to 2400 MHz
Mounting method : At earthing clamp block
Pro-active thermo-control : No
Connection 1 : F-Connector
With remote signalling contact : No
Explosion-tested version : No
