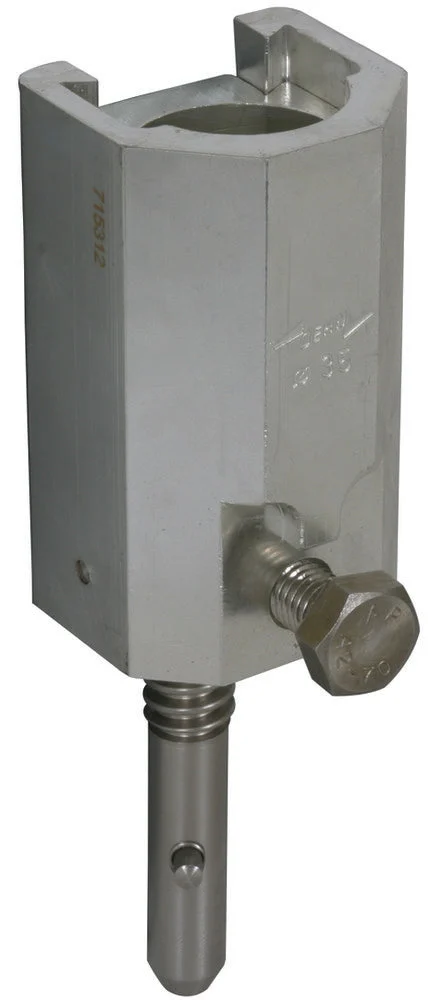

This is a round pin clamp with a T pin shaft, designated as a phase connecting element in compliance with EN/IEC 61230 (DIN VDE 0683-100). It is intended to be installed at the phase cable end of earthing and short-circuiting devices. This Dehn connection component features an anti-rotation element and a maximum short-circuit current of 42kA. It allows for a wire cross-section of 16 – 150mm² and a clamping range of 35mm. The connection method is unspecified and the operating rod spindle is affixed with a cross-pin. Its application is phase-side.
Specifications
Max. short circuit current (kA) : 42
For wire cross section (mm²) : 16 mm² to 150 mm²
Clamping range (mm) : 35 mm to 35 mm
Connection type : Other
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
