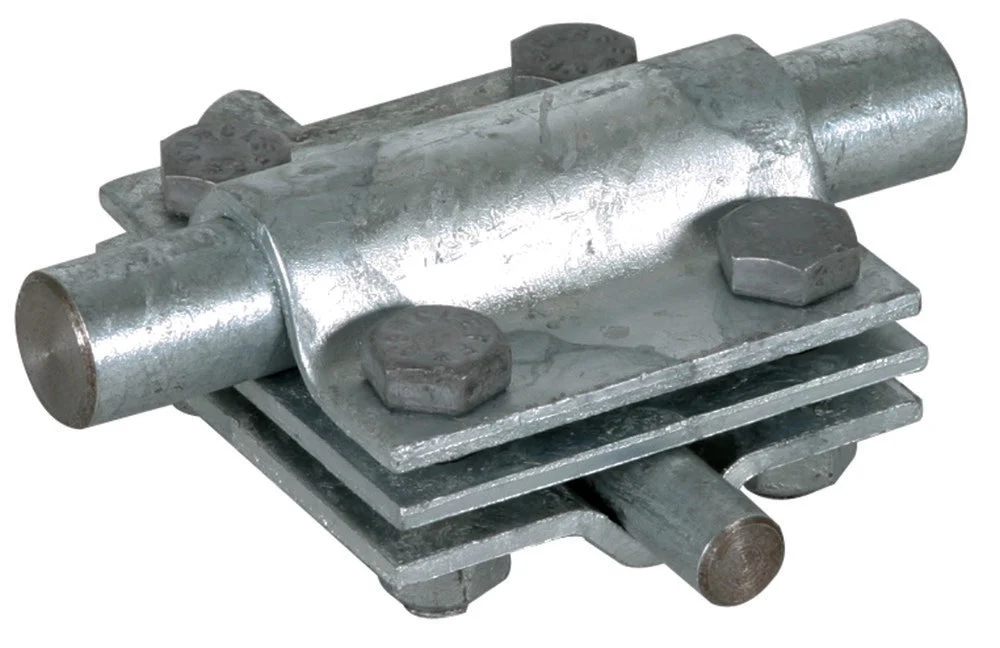

Dehn Cross Unit with Intermediate Plate for Overvoltage Protection – 319202

This is a Dehn connector, ideal for lightning protection applications, made of steel, and specifically designed for cross coupling connections. It has a round conductor diameter of 1-16mm and a flat conductor diameter of 1-30mm, with a second round conductor diameter that measures between 8 to 10mm. The surface is thermally galvanized for added protection, and it features hexagonal screws for secure fitting. It is compliant with EN 62561-1 standards, suitable for both aboveground and underground connection of round and flat conductors to air-termination or earth entry rods. Includes an intermediate plate and M8 screws for installation.

Specifications

Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 16 mm to 16 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
