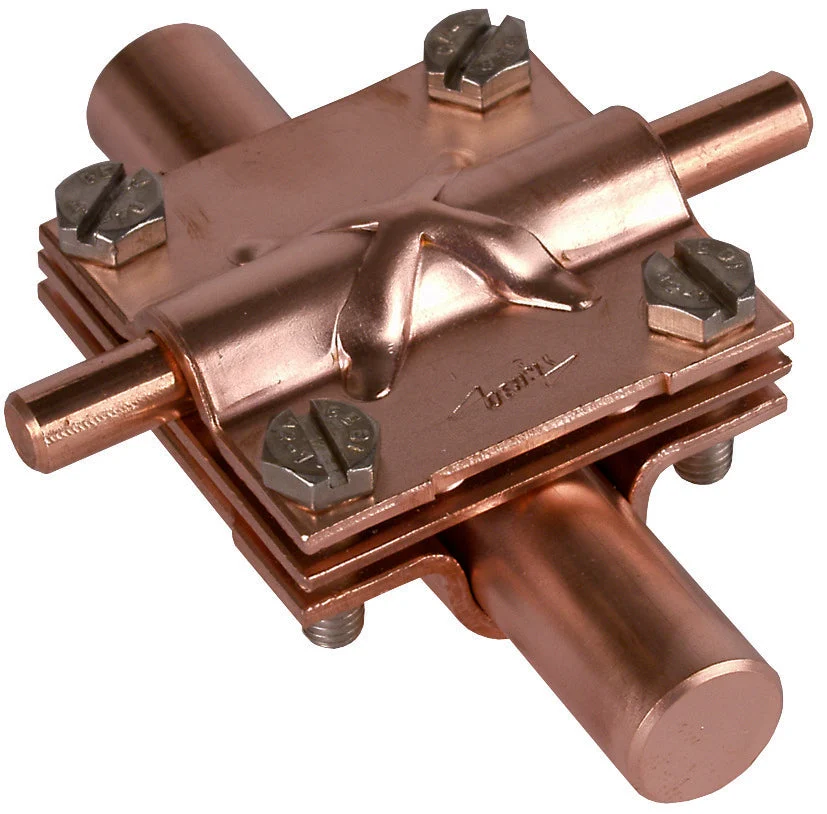

Dehn Cross Unit With Intermediate Plate CU KS 16 FL 30MM RD 16 – 316167

This is a Dehn connector for lightning protection, made of copper and featuring a cross-coupling connection type. It is a cross unit that adheres to EN 62561-1 standards, designed for aboveground connection of round and flat conductors to air-termination rods. It accommodates a round conductor diameter of 16mm, a flat conductor diameter of 30mm, and a secondary round conductor diameter of 8-10mm. Note that there is no surface protection as it is untreated. The connector utilizes hexagonal screws for attachment, specifically type M6 screws, and equipped with an intermediate plate.

Specifications

Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 16 mm to 16 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Material : Copper
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
