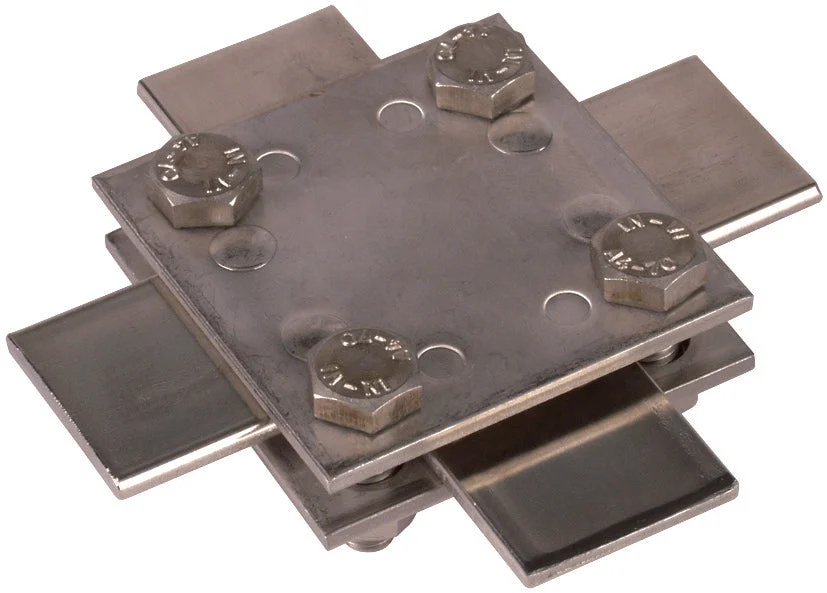

This is a Dehn connector suitable for lightning protection, composed of stainless steel (RVS 316/V4A). This cross coupling unit conforms to EN 62561-1 and is designed for connecting two flat conductors both aboveground and underground. The diameter of the flat conductor 1 and 2 are of 30mm each. The surface protection is bare (untreated) and the type of fastening screws is a hexagonal screw. It does not have an intermediate plate and comes with M8 screws. The lightning current carrying capacity is 100kA for 10/350 µs.
Specifications
Type of connector : T-/cross-/parallel connector
Width flat conductor 1 (mm) : 30 mm to 30 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Stainless steel V4A
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
