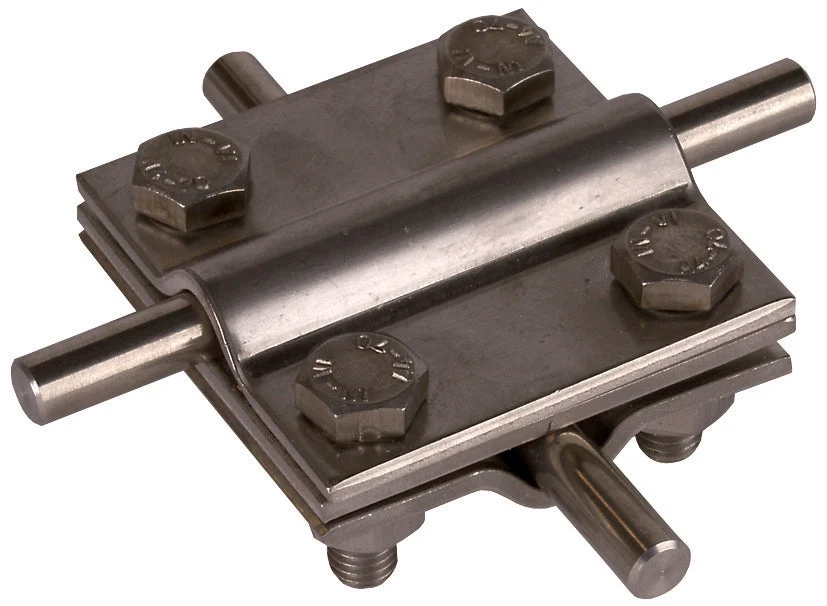

DEHN Cross Unit StSt V4A 8-10mm Interm Accessories KS8.10 – 319209

This is a cross connector for lightning protection, made from V4A (316 stainless steel), designed for both aboveground and underground connections of round and flat conductors. The connector utilizes a cross coupling type of connection with an intermediate plate, featuring M8 screws. It accommodates round conductors having a diameter between 8 and 10mm, and flat conductors with a diameter of 30mm. This cross connector doesn’t have any surface protection, leaving it untreated. This product complies with EN 62561-1 standards.

Specifications

Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Stainless steel V4A
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
