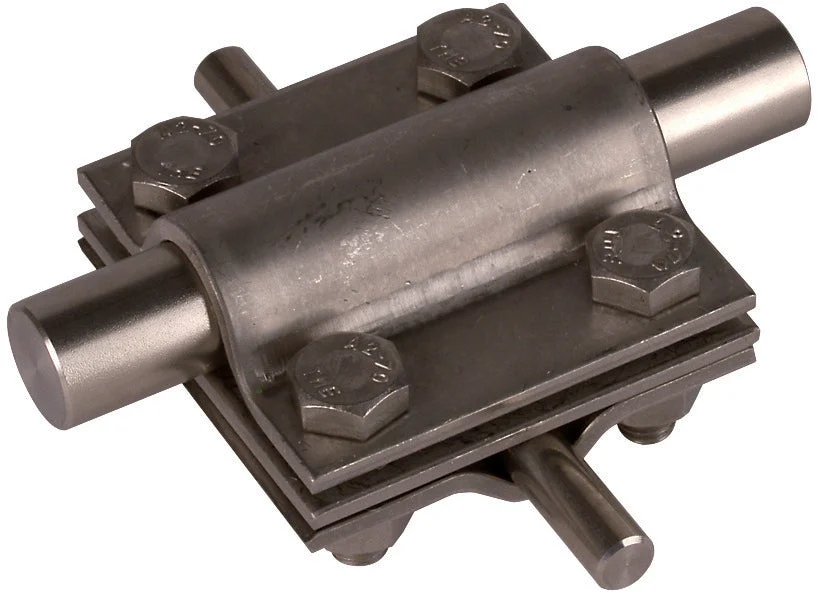

This is a stainless steel 316 (V4A) Dehn connector for lightning protection, designed for cross coupling connections. It features a round conductor of 16mm diameter, a flat conductor with 30mm diameter and a second round conductor which varies between 8-10mm in diameter. The surface of this connector is untreated, and it uses hexagonal screws for attachment. It’s compliant with EN 62561-1, making it suitable for aboveground and underground connection of round, flat conductors to air-termination or earth entry rods. The model features an intermediate plate and utilizes M8 screws.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 16 mm to 16 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Material : Stainless steel V4A
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
