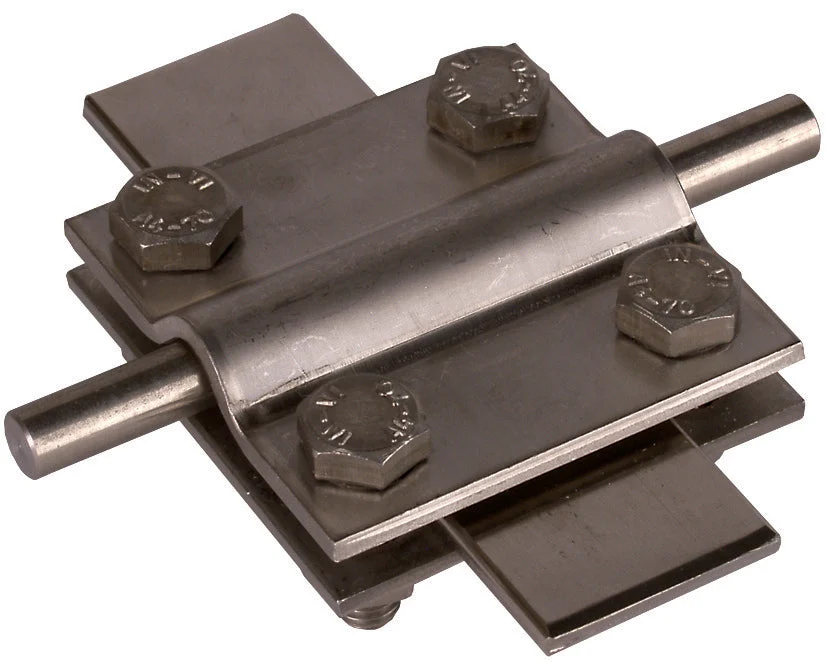

This is a Dehn connector for lightning protection, made from stainless steel 316 (V4A). It’s designed for cross-connection of both round and flat conductors with diameters ranging from 8-10mm and 30mm respectively. The surface of the connector is untreated and it doesn’t feature an intermediate plate. It uses hexagon screws for attachment and complies with the EN 62561-1 standard for aboveground and underground connections. The connector comes with M8 screws and does not have surface protection.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Stainless steel V4A
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
