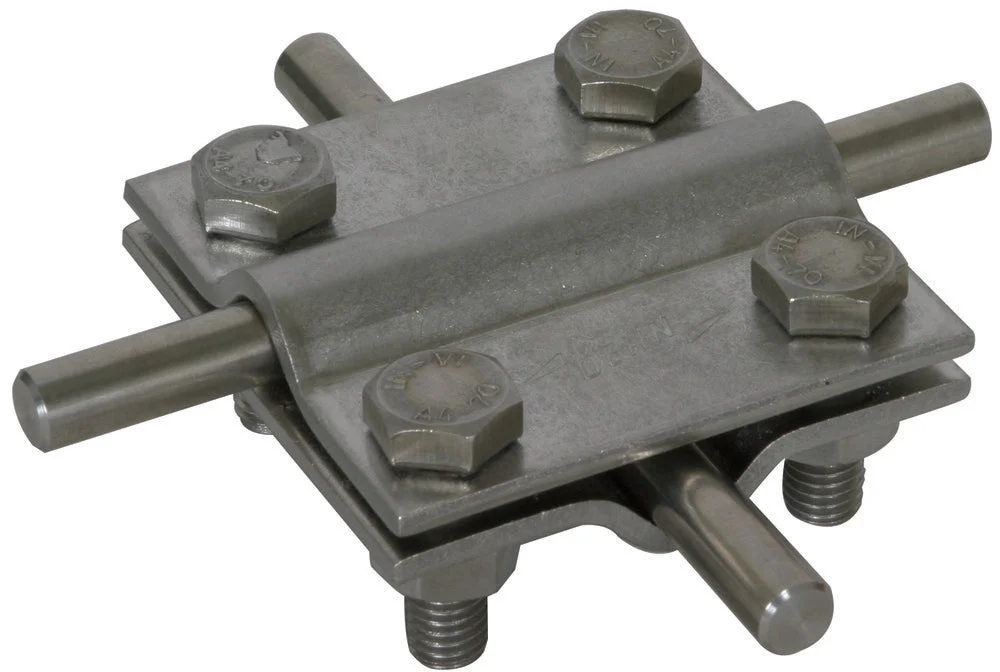

This is a Dehn connector for lightning protection, made from stainless steel 316 (V4A). The type of connection it provides is a cross coupling. It accommodates round conductors with a diameter between 8 and 10mm, and flat conductors with a diameter of up to 30mm. It doesn’t have any surface protection and is untreated. This connector adheres to EN 62561-1, suitable for both aboveground and underground connection of round and flat conductors. It does not come with an intermediate plate but includes M8 screws.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Stainless steel V4A
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
