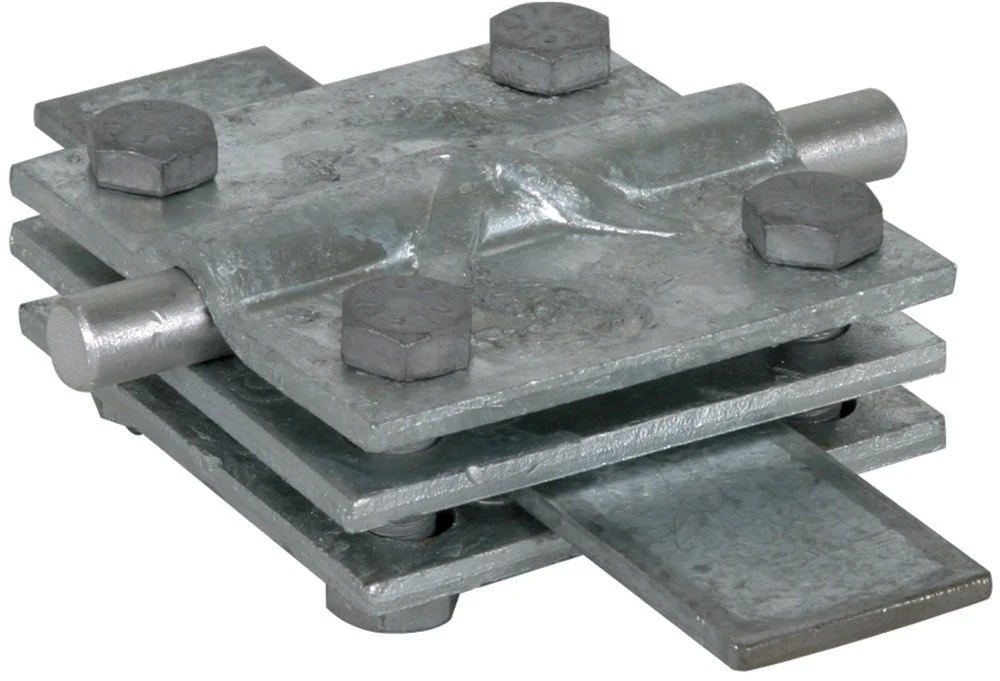

The item is a cross unit designed for lightning protection, compliant with EN 62561-1 standards. Its use includes both aboveground and underground connections of round and flat conductors. The round conductor’s diameter ranges from 8-10mm and the flat conductor’s width is up to 40mm. It features an intermediate plate and M8 hexagonal screws for secure fixture. The cross unit is made of steel and offers thermal galvanization for efficient surface protection. It uses a cross coupling type of connection for a reliable, robust connection.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 40 mm
Width flat conductor 2 (mm) : 30 mm to 40 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
